Components [01/2019 - 11/2022]
WARNING: This page is about a different car, the 2022 Toyota Corolla, 2021 Toyota Corolla, 2020 Toyota Corolla, and 2019 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

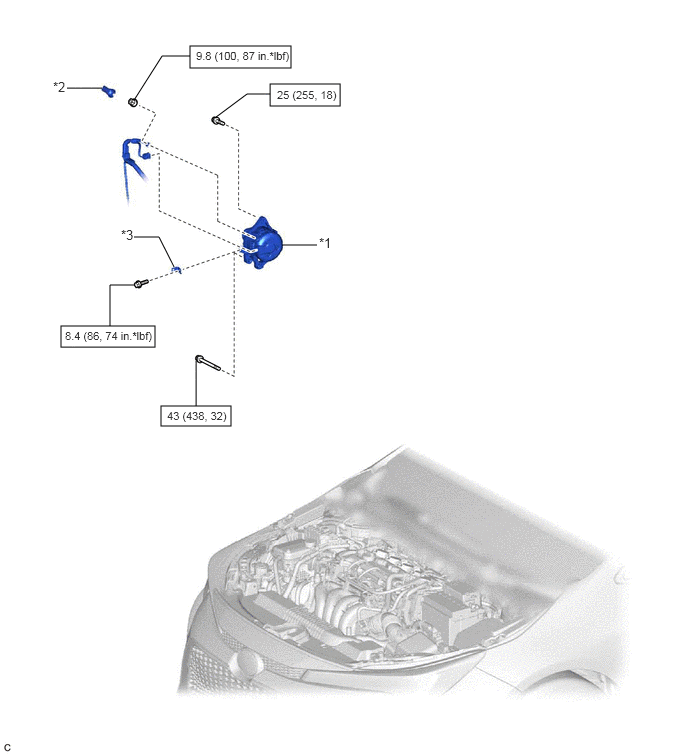

| Callout |
Description |
Callout |
Description |
| *1 |
GENERATOR ASSEMBLY |
*2 |
TERMINAL CAP |
| *3 |
WIRE HARNESS CLAMP BRACKET |
- |
- |
|
N.m (kgf/cm, ft.lbf): Specified torque |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

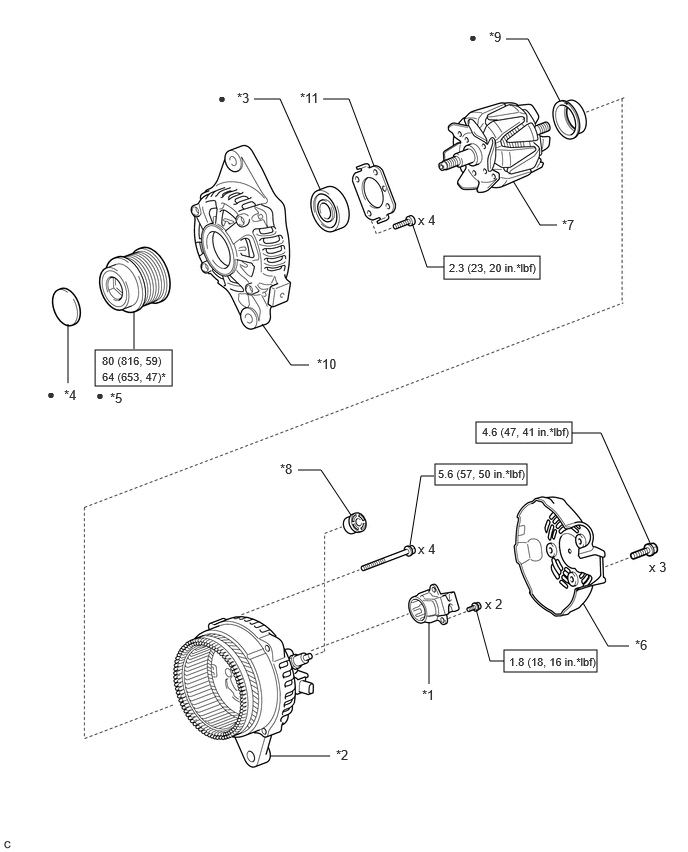

| Callout |
Description |
Callout |
Description |
| *1 |
GENERATOR BRUSH HOLDER ASSEMBLY |
*2 |
GENERATOR COIL ASSEMBLY |
| *3 |
GENERATOR DRIVE END FRAME BEARING |
*4 |
GENERATOR PULLEY CAP |
| *5 |
GENERATOR PULLEY WITH CLUTCH |
*6 |
GENERATOR REAR END COVER |
| *7 |
GENERATOR ROTOR ASSEMBLY |
*8 |
GENERATOR TERMINAL INSULATOR |
| *9 |
BEARING COVER PACKING |
*10 |
GENERATOR DRIVE END FRAME |
| *11 |
RETAINER PLATE |
- |
- |
|
N.m (kgf/cm, ft.lbf): Specified torque |
* |
For use with SST |
| • |
Non-reusable part |
- |
- |
