Disassembly [01/2019 - 03/2019]: Procedure

WARNING: This page is about a different car, the 2022 Toyota Corolla, 2021 Toyota Corolla, 2020 Toyota Corolla, and 2019 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE INTAKE VALVE

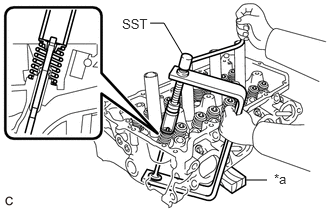

    1. Using SST and wooden blocks, compress the inner compression spring and remove the 8 valve spring retainer locks.
      • SST: 09202-70020
        1. 09202-01010
        2. 09202-01020
      • SST: 09202-00021
      GTY492396Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Wooden Block

      HINT:

      Arrange the removed parts in such a way that they can be reinstalled to their original locations.

    2. Remove the 8 valve spring retainers, 8 inner compression springs and 8 intake valves from the cylinder head sub-assembly.

      HINT:

      Arrange the removed parts in such a way that they can be reinstalled to their original locations.

  2. REMOVE EXHAUST VALVE

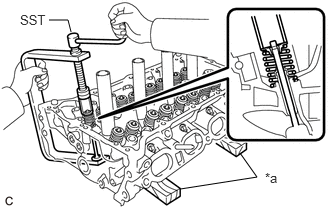

    1. Using SST and wooden blocks, compress the inner compression spring and remove the 8 valve spring retainer locks.
      GTY862258Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Wooden Block
      • SST: 09202-70020
        1. 09202-01010
        2. 09202-01020
      • SST: 09202-00021

      HINT:

      Arrange the removed parts in such a way that they can be reinstalled to their original locations.

    2. Remove the 8 valve spring retainers, 8 inner compression springs and 8 exhaust valves from the cylinder head sub-assembly.

      HINT:

      Arrange the removed parts in such a way that they can be reinstalled to their original locations.

  3. REMOVE VALVE STEM OIL SEAL

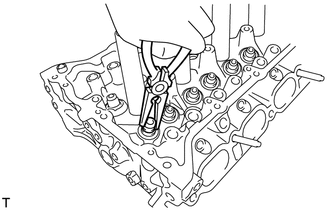

    1. Remove the 16 valve stem oil seals.
      GTY164618Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE VALVE SPRING SEAT

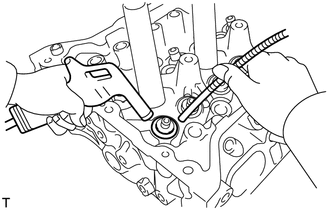

    1. Using compressed air and a Magnet Hand, remove the 16 valve spring seats from the cylinder head sub-assembly by blowing air onto them.
      GTY161244Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE NO. 2 STRAIGHT SCREW PLUG
    NOTE:

    If coolant leaks from the No. 2 straight screw plug or the No. 2 straight screw plug is corroded, replace it.

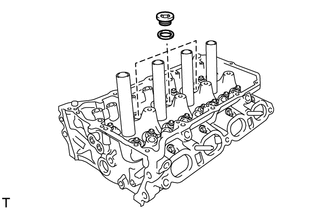

    1. Using a 10 mm straight hexagon wrench, remove the 3 No. 2 straight screw plugs and 3 gaskets from the cylinder head sub-assembly.
      GTY449252Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE STUD BOLT
    NOTE:

    If a stud bolt is deformed or its threads are damaged, replace it.

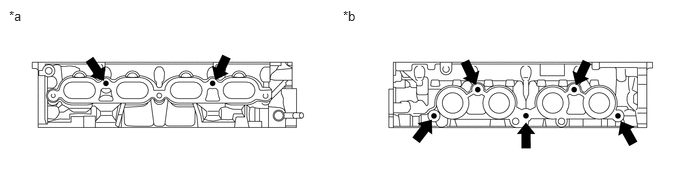

    1. Using E7 and E8 "TORX" socket wrenches, remove the stud bolts.
      GTY761656Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Intake Manifold Side *b Exhaust Manifold Side
