Disassembly [03/2019 - 09/2022]: Procedure

WARNING: This page is about a different car, the 2022 Toyota Corolla, 2021 Toyota Corolla, 2020 Toyota Corolla, and 2019 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE NO. 1 VENTILATION CASE

    HINT:

    There are 2 installation methods for the No. 1 ventilation case.

    Depending on the installation method, the number of bolts, nuts and stud bolts used will vary.

    1. Type A:

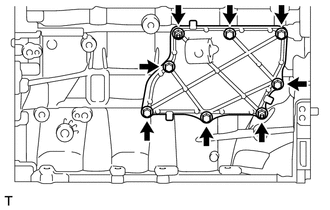

      1. Remove the 6 bolts and 2 nuts.
        GTY755283Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Type B:
      1. Remove the 8 bolts.

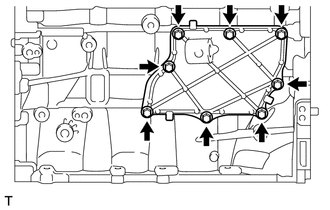

        GTY764160Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the No. 1 ventilation case by prying between the No. 1 ventilation case and cylinder block sub-assembly with a screwdriver with its tip wrapped with protective tape.

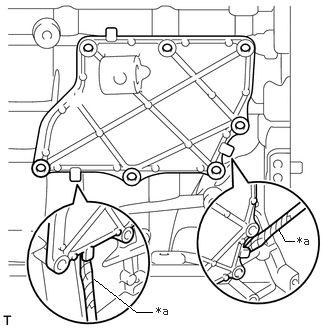

      GTY741581Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
      NOTE:

      Be careful not to damage the contact surfaces of the cylinder block sub-assembly and No. 1 ventilation case.

  2. REMOVE PISTON SUB-ASSEMBLY WITH CONNECTING ROD

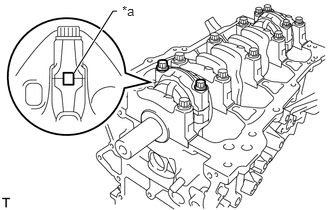

    1. Place a paint mark across each corresponding connecting rod and connecting rod cap.
      GTY843976Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Paint Mark

      HINT:

      The paint marks are used to ensure that the same parts are installed in the same combination to their original locations.

    2. Using SST, remove the 8 connecting rod bolts from the connecting rod caps.

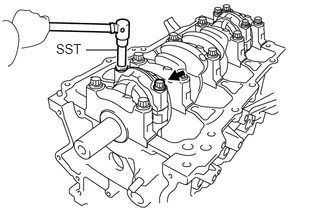

      GTY919726Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09205-16011
    3. Using the 2 removed connecting rod bolts, remove the 4 connecting rod caps with connecting rod bearings by wiggling each connecting rod cap left and right.

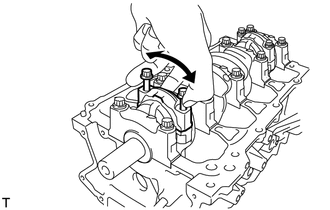

      GTY161251Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Keep the connecting rod bearing installed to the connecting rod cap.

    4. Using a ridge reamer, scrape off any carbon on the top of the cylinder.
      GTY161144Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Push out the 4 pistons with 4 connecting rods and 4 connecting rod bearings through the top of the cylinder block sub-assembly.

      HINT:

      • Keep the connecting rod bearings, connecting rods and connecting rod caps together.
      • Arrange the removed parts in such a way that they can be reinstalled to their original locations.
  3. REMOVE CONNECTING ROD BEARING
    1. Remove the 8 connecting rod bearings from the 4 connecting rods and 4 connecting rod caps.

      HINT:

      Arrange the removed parts in such a way that they can be reinstalled to their original locations.

  4. REMOVE PISTON RING SET
    1. Using a piston ring expander, remove the No. 1 compression ring and No. 2 compression ring from the piston.
      GTY230490Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the oil ring expander, upper side rail and lower side rail from the piston by hand.

      HINT:

      Arrange the removed parts in such a way that they can be reinstalled to their original locations.

  5. REMOVE PISTON
    1. Using a screwdriver, pry out the piston pin hole snap ring from the piston.
      GTY164432Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • Do not remove the piston pin hole snap ring (rear side) unless it is being replaced.
      • Be careful not to damage the piston when removing the piston pin hole snap ring (rear side).
    2. Gradually heat each piston to approximately 80 to 90°C (176 to 194°F).
      GTY161610Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      WARNING:

      Be sure to wear protective gloves.

    3. Using a plastic hammer and brass bar, lightly tap out the piston pin and remove the connecting rod.
      GTY162022Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      • The piston and piston pin are a matched set.
      • Arrange the pistons, piston pins, piston rings, connecting rods and connecting rod bearings in the correct order.
  6. REMOVE CRANKSHAFT

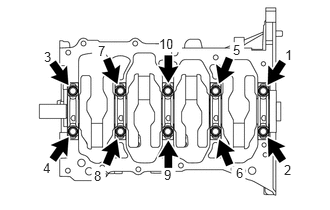

    1. Uniformly loosen and remove the 10 crankshaft bearing cap set bolts in several steps in the order shown in the illustration.
      GTY744785Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using the 2 removed crankshaft bearing cap set bolts, remove the 5 crankshaft bearing caps from the cylinder block sub-assembly by wiggling each crankshaft bearing cap back and forth.

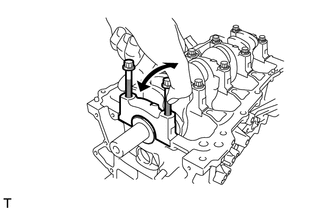

      GTY755284Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Arrange the removed parts in such a way that they can be reinstalled to their original locations.

    3. Remove the crankshaft from the cylinder block sub-assembly.
  7. REMOVE UPPER CRANKSHAFT THRUST WASHER
    1. Remove the 2 upper crankshaft thrust washers from the cylinder block sub-assembly.

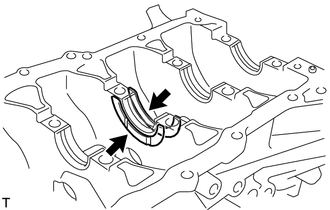

      GTY164439Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE CRANKSHAFT BEARING

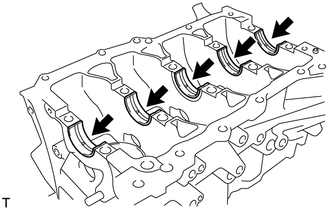

    1. Remove the 5 upper crankshaft bearings from the cylinder block sub-assembly.
      GTY161259Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Arrange the removed parts in such a way that they can be reinstalled to their original locations.

    2. Remove the 5 crankshaft bearings from the 5 crankshaft bearing caps.
      GTY164440Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Arrange the removed parts in such a way that they can be reinstalled to their original locations.

  9. REMOVE NO. 1 OIL NOZZLE SUB-ASSEMBLY
    1. Using a 5 mm hexagon socket wrench, remove the 4 bolts and 4 No. 1 oil nozzle sub-assemblies from the cylinder block sub-assembly.

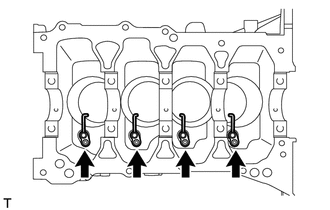

      GTY755286Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. CLEAN CYLINDER BLOCK SUB-ASSEMBLY
    NOTE:

    If the cylinder is washed at high temperatures, the cylinder liner will stick out beyond the cylinder block sub-assembly. Always wash the cylinder block sub-assembly at a temperature of 45°C (113°F) or less.
