Components [01/2019 - 11/2022]
WARNING: This page is about a different car, the 2022 Toyota Corolla, 2021 Toyota Corolla, 2020 Toyota Corolla, and 2019 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

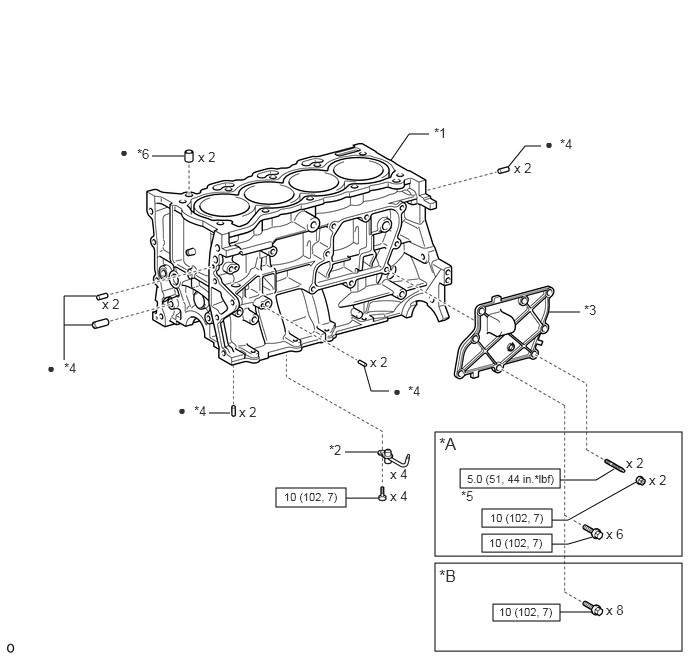

Fig 1: Cylinder Block Replacement Components With Torque Specifications [01/2019 - 11/2022] (1 Of 2)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | Type A | *B | Type B |
| *1 | CYLINDER BLOCK SUB-ASSEMBLY | *2 | NO. 1 OIL NOZZLE SUB-ASSEMBLY |
| *3 | NO. 1 VENTILATION CASE | *4 | STRAIGHT PIN |
| *5 | STUD BOLT | *6 | RING PIN |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part |

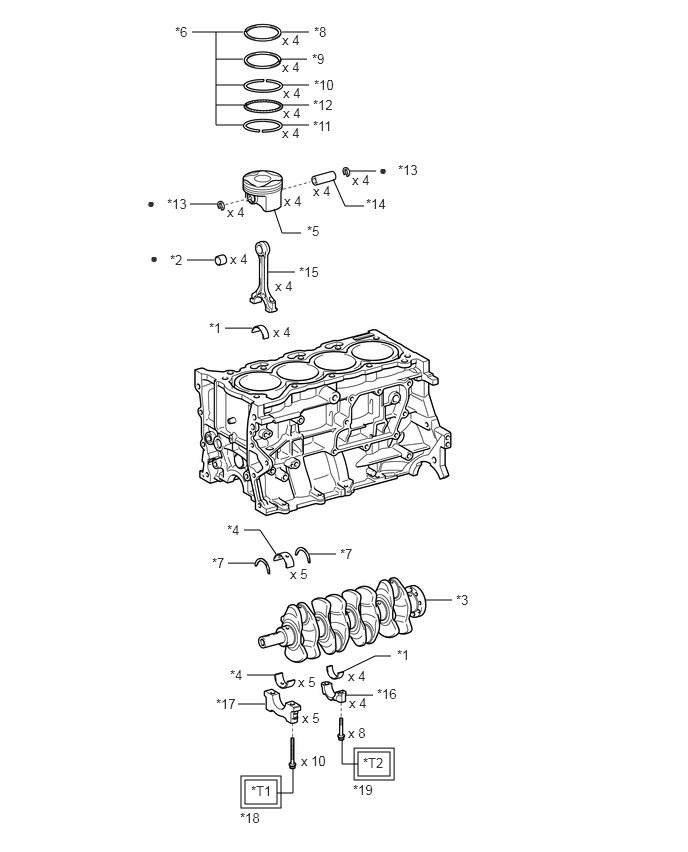

Fig 2: Cylinder Block Replacement Components With Torque Specifications [01/2019 - 11/2022] (2 Of 2)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | CONNECTING ROD BEARING | *2 | CONNECTING ROD SMALL END BUSH |
| *3 | CRANKSHAFT | *4 | CRANKSHAFT BEARING |
| *5 | PISTON | *6 | PISTON RING SET |
| *7 | UPPER CRANKSHAFT THRUST WASHER | *8 | NO. 1 COMPRESSION RING |
| *9 | NO. 2 COMPRESSION RING | *10 | UPPER SIDE RAIL |
| *11 | LOWER SIDE RAIL | *12 | OIL RING EXPANDER |
| *13 | PISTON PIN HOLE SNAP RING | *14 | PISTON PIN |
| *15 | CONNECTING ROD | *16 | CONNECTING ROD CAP |
| *17 | CRANKSHAFT BEARING CAP | *18 | CRANKSHAFT BEARING CAP SET BOLT |
| *19 | CONNECTING ROD BOLT | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | • | Non-reusable part | |
| *T1 | 1st: 40 (408, 30) 2nd: Turn 90° |
*T2 | 1st: 20 (204, 15) 2nd: Turn 90° |
