Parts Location [01/2019 - 11/2022]: Illustration

WARNING: This page is about a different car, the 2022 Toyota Corolla, 2021 Toyota Corolla, 2020 Toyota Corolla, and 2019 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

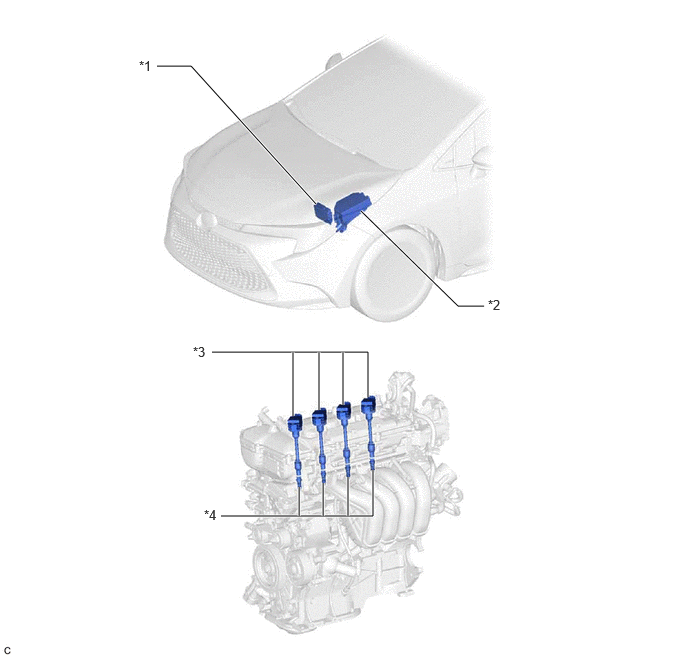

GTY929882Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 ECM *2 NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY
- INJ-B FUSE
- EFI-MAIN RELAY
*3 IGNITION COIL ASSEMBLY *4 SPARK PLUG
