Components [03/2019 - 11/2022]

WARNING: This page is about a different car, the 2022 Toyota Corolla, 2021 Toyota Corolla, 2020 Toyota Corolla, and 2019 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

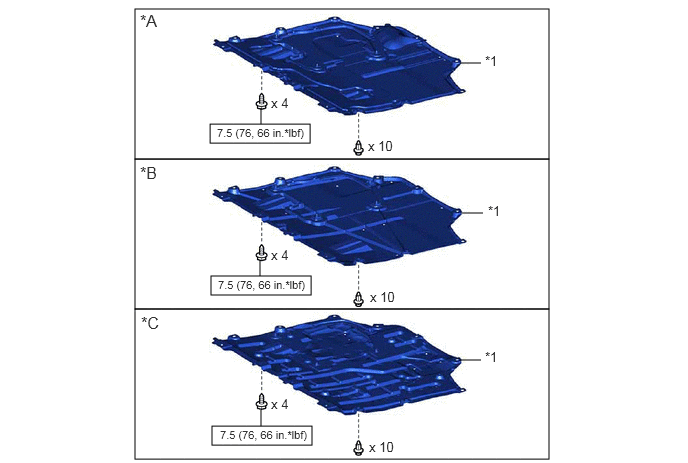

Fig 1: Starter Replacement Components With Torque Specifications [03/2019 - 11/2022] (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*A	Type A	*B	Type B
*C	Type C	-	-
*1	NO. 1 ENGINE UNDER COVER ASSEMBLY	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

Fig 2: Starter Replacement Components With Torque Specifications [03/2019 - 11/2022] (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	STARTER ASSEMBLY	-	-
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf)		N.m (kgf/cm, ft.lbf): Specified torque

Fig 3: Starter Replacement Components With Torque Specifications [03/2019 - 11/2022] (3 Of 3)

Callout	Description	Callout	Description
*1	MAGNET STARTER SWITCH ASSEMBLY	*2	STARTER ARMATURE ASSEMBLY
*3	STARTER BRUSH HOLDER ASSEMBLY	*4	STARTER CENTER BEARING CLUTCH SUB-ASSEMBLY
*5	STARTER COMMUTATOR END FRAME ASSEMBLY	*6	STARTER YOKE ASSEMBLY
*7	STARTER DRIVE HOUSING ASSEMBLY	*8	RUBBER SEAL
	N.m (kgf/cm, ft.lbf): Specified torque		High-temperature grease
