Components [01/2019 - 11/2022]

WARNING: This page is about a different car, the 2022 Toyota Corolla, 2021 Toyota Corolla, 2020 Toyota Corolla, and 2019 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

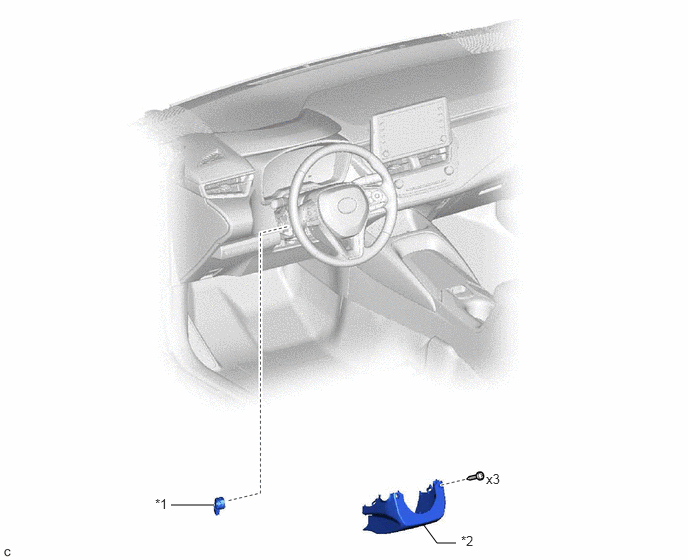

Fig 1: Ignition Switch Replacement Components [01/2019 - 11/2022]
GTY869745Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 IGNITION OR STARTER SWITCH ASSEMBLY *2 LOWER STEERING COLUMN COVER SUB-ASSEMBLY
