Microphone Circuit [09/2019 - 04/2020]: Wiring Diagram

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 Toyota GR Corolla, 2023 Toyota Corolla, 2022 Toyota Corolla, 2021 Toyota Corolla, and 2020 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

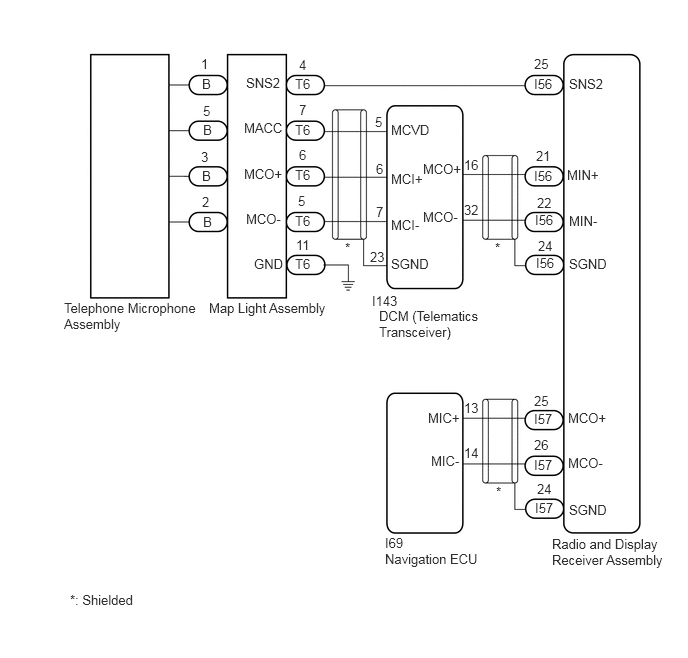

for Hatchback Model with Manual (SOS) Switch

GTY913072Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

for Sedan Model with Manual (SOS) Switch

GTY913078Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

w/o Manual (SOS) Switch

GTY908174Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
