Parts Location [03/2019 - 04/2020]: Illustration
WARNING: This page is about a different car, the 2023 Toyota GR Corolla, 2023 Toyota Corolla, 2022 Toyota Corolla, 2021 Toyota Corolla, and 2020 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

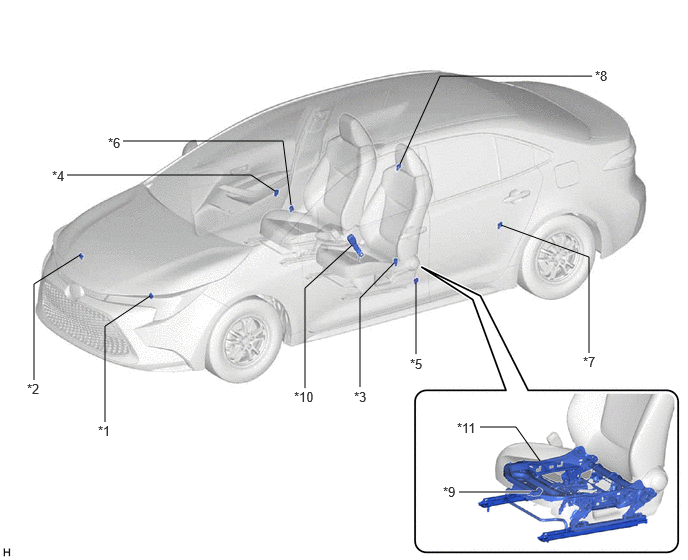

| *1 | FRONT AIRBAG SENSOR LH | *2 | FRONT AIRBAG SENSOR RH |
| *3 | SIDE AIRBAG PRESSURE SENSOR LH | *4 | SIDE AIRBAG PRESSURE SENSOR RH |
| *5 | SIDE NO. 1 AIRBAG SENSOR LH | *6 | SIDE NO. 1 AIRBAG SENSOR RH |
| *7 | SIDE NO. 2 AIRBAG SENSOR LH | *8 | SIDE NO. 2 AIRBAG SENSOR RH |
| *9 | SEAT POSITION AIRBAG SENSOR | *10 | FRONT SEAT INNER BELT ASSEMBLY LH - FRONT SEAT BELT BUCKLE SWITCH LH |
| *11 | SEPARATE TYPE FRONT SEAT CUSHION SPRING ASSEMBLY LH | - | - |

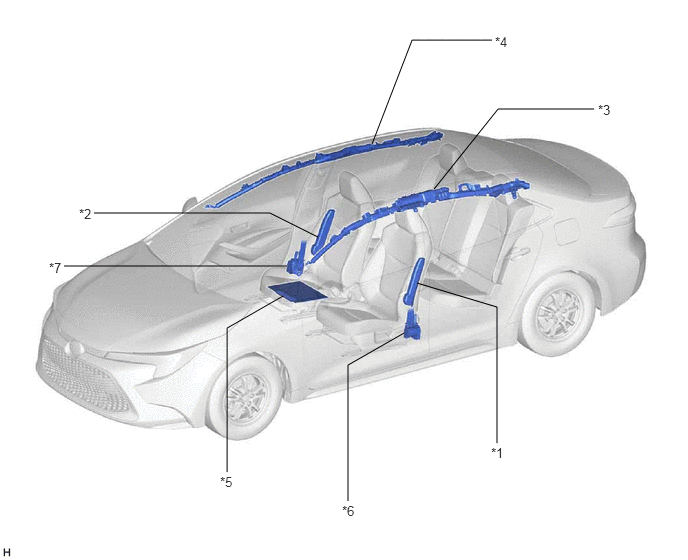

| *1 | FRONT SEAT AIRBAG ASSEMBLY LH | *2 | FRONT SEAT AIRBAG ASSEMBLY RH |
| *3 | CURTAIN SHIELD AIRBAG ASSEMBLY LH | *4 | CURTAIN SHIELD AIRBAG ASSEMBLY RH |
| *5 | FRONT SEAT CUSHION AIRBAG ASSEMBLY RH | *6 | FRONT SEAT OUTER BELT ASSEMBLY LH |
| *7 | FRONT SEAT OUTER BELT ASSEMBLY RH | - | - |
| *1 | HORN BUTTON ASSEMBLY | *2 | INSTRUMENT PANEL PASSENGER AIRBAG ASSEMBLY |
| *3 | LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY | *4 | AIRBAG SENSOR ASSEMBLY |
| *5 | OCCUPANT DETECTION ECU | *6 | SPIRAL CABLE SUB-ASSEMBLY |
| *7 | TELLTALE LIGHT ASSEMBLY - PASSENGER AIRBAG ON/OFF INDICATOR |
*8 | COMBINATION METER ASSEMBLY - SRS WARNING LIGHT |
| *9 | DCM (TELEMATICS TRANSCEIVER) (w/ Manual (SOS) Switch) | *10 | DLC3 |
| *11 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - A/BAG-IG2 FUSE - METER-IG2 FUSE - ECU-DCC NO. 2 FUSE - ECU-IG1 NO. 4 FUSE |
- | - |
