Removal [01/2019 - 03/2019]: Procedure

WARNING: This page is about a different car, the 2022 Toyota Corolla, 2021 Toyota Corolla, 2020 Toyota Corolla, and 2019 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE CONTINUOUSLY VARIABLE TRANSAXLE ASSEMBLY (for CVT)

    Refer to REMOVAL [01/2019 - 03/2019]

  2. REMOVE CLUTCH DISC ASSEMBLY (for Manual Transaxle)

    Refer to REMOVAL [01/2019 - 03/2019]

  3. REMOVE DRIVE PLATE AND RING GEAR SUB-ASSEMBLY (for CVT)
    1. Using height adjustment attachments and plate lift attachments, place the engine assembly on a flat level surface.
      NOTE:
      • Using height adjustment attachments and plate lift attachments, place the engine assembly horizontally.
      • To prevent the No. 2 oil pan sub-assembly from deforming, do not place any attachments under the No. 2 oil pan sub-assembly of the engine assembly.
      • Using an engine sling device and engine lift, secure the engine assembly before servicing.

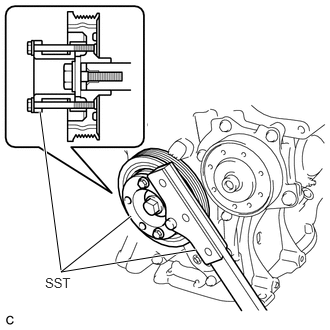

    2. Using SST, hold the crankshaft pulley.
      • SST: 09213-54015
        1. 91551-00850
      • SST: 09330-00021
      GTY862482Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the 8 bolts, rear drive plate spacer, drive plate and ring gear sub-assembly and front drive plate spacer from the crankshaft.
      GTY175601Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE FLYWHEEL SUB-ASSEMBLY (for Manual Transaxle)
    1. Using height adjustable attachments and plate lift attachments, place the engine assembly on a flat, level surface.
      NOTE:
      • Using height adjustment attachments and plate lift attachments, place the engine assembly horizontally.
      • To prevent the No. 2 oil pan sub-assembly from deforming, do not place any attachments under the No. 2 oil pan sub-assembly of the engine assembly.
      • Using an engine sling device and engine lift, secure the engine assembly before servicing.
    2. Using SST, hold the crankshaft pulley.
      GTY862482Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09213-54015
        1. 91551-00850
      • SST: 09330-00021
    3. Remove the 8 bolts and the flywheel sub-assembly from the crankshaft.
      GTY161146Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE REAR ENGINE OIL SEAL

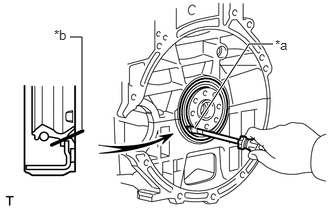

    1. Using a knife, cut through the lip of the rear engine oil seal.
      GTY943534Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
      *b Cut Position
    2. Using a screwdriver with its tip wrapped with protective tape, pry out the rear engine oil seal.
      NOTE:

      Be careful not to damage the crankshaft.
