Components [01/2019 - 11/2022]
WARNING: This page is about a different car, the 2022 Toyota Corolla, 2021 Toyota Corolla, 2020 Toyota Corolla, and 2019 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

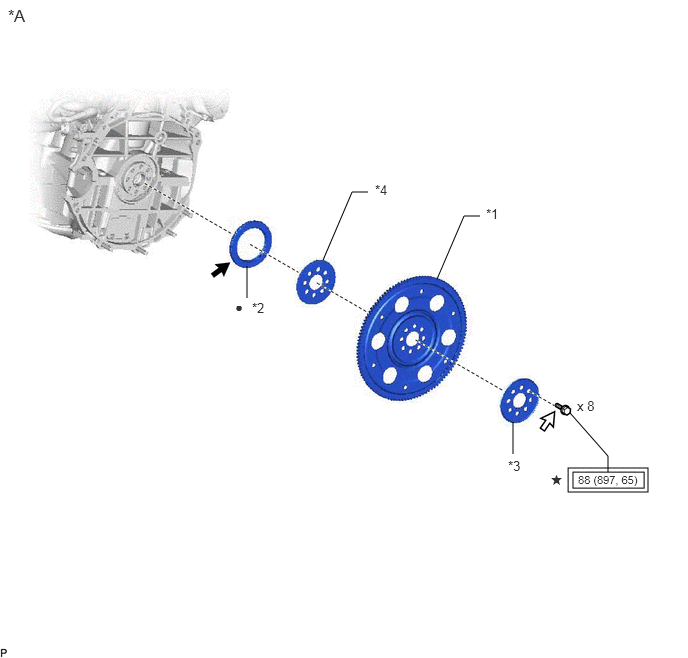

Fig 1: Rear Crankshaft Oil Seal Replacement Components With Torque Specifications [01/2019 - 11/2022] (1 Of 2)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | for CVT | - | - |
| *1 | DRIVE PLATE AND RING GEAR SUB-ASSEMBLY | *2 | REAR ENGINE OIL SEAL |
| *3 | REAR DRIVE PLATE SPACER | *4 | FRONT DRIVE PLATE SPACER |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | • | Non-reusable part | |
| MP grease | Adhesive 1324 | ||
| * | Precoated part | - | - |

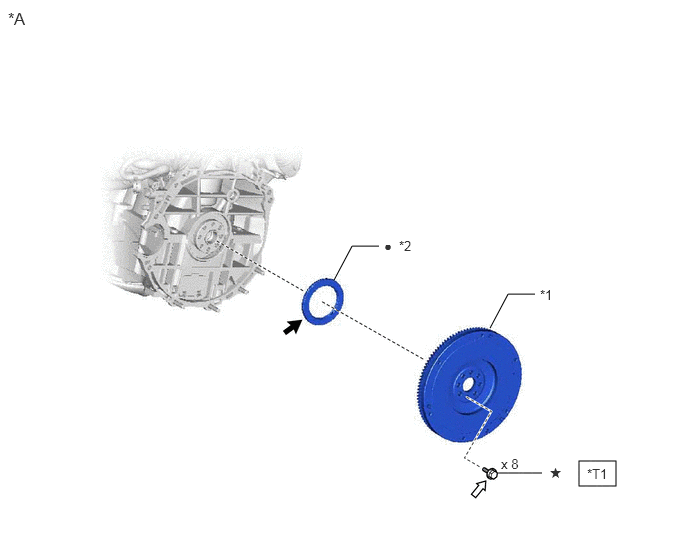

Fig 2: Rear Crankshaft Oil Seal Replacement Components With Torque Specifications [01/2019 - 11/2022] (2 Of 2)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | for Manual Transaxle | - | - |
| *1 | FLYWHEEL SUB-ASSEMBLY | *2 | REAR ENGINE OIL SEAL |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part | |
| MP grease | Adhesive 1324 | ||
| * | Precoated part | - | - |
| *T1 | 1st: 49 (500, 36) 2nd: Turn 90° |
- | - |
