Components [01/2019 - 03/2019]
WARNING: This page is about a different car, the 2022 Toyota Corolla, 2021 Toyota Corolla, 2020 Toyota Corolla, and 2019 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

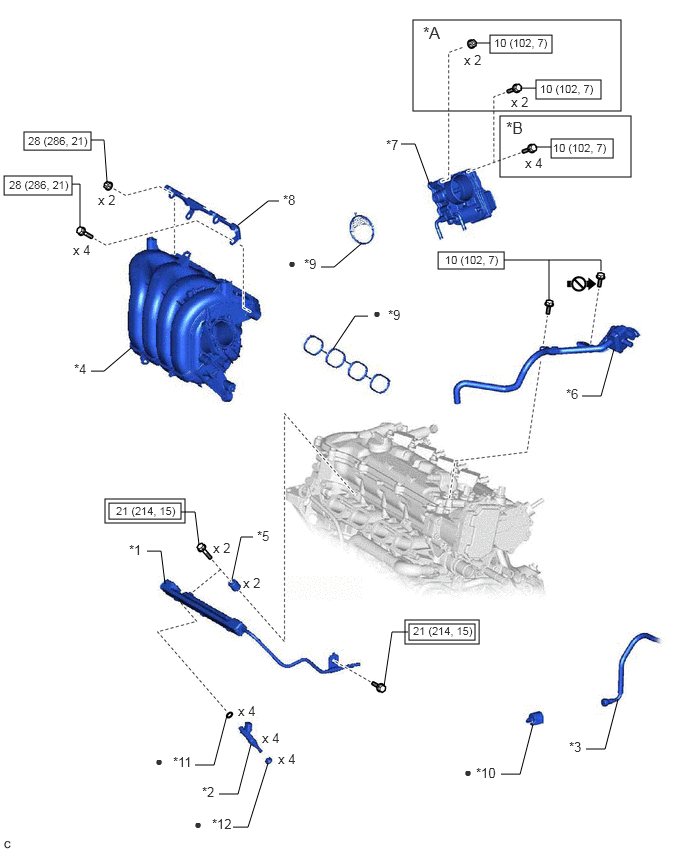

| Callout |
Description |
Callout |
Description |
| *A |
w/ Stud Bolt |
*B |
w/o Stud Bolt |
| *1 |
FUEL DELIVERY PIPE SUB-ASSEMBLY |
*2 |
FUEL INJECTOR ASSEMBLY |
| *3 |
FUEL TUBE SUB-ASSEMBLY |
*4 |
INTAKE MANIFOLD |
| *5 |
NO. 1 DELIVERY PIPE SPACER |
*6 |
PURGE VALVE (PURGE VSV) |
| *7 |
THROTTLE BODY ASSEMBLY |
*8 |
INTAKE MANIFOLD STAY |
| *9 |
GASKET |
*10 |
NO. 2 FUEL PIPE CLAMP |
| *11 |
O-RING |
*12 |
INJECTOR VIBRATION INSULATOR |
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) |
|
N.m (kgf/cm, ft.lbf): Specified torque |
| • |
Non-reusable part |
|
Do not apply lubricants to the threaded parts |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |
| *A |
Type A |
*B |
Type B |
| *1 |
EXHAUST MANIFOLD |
*2 |
MANIFOLD STAY |
| *3 |
NO. 1 EXHAUST MANIFOLD HEAT INSULATOR |
*4 |
DRIVE SHAFT HEAT INSULATOR SUB-ASSEMBLY |
| *5 |
EXHAUST MANIFOLD TO HEAD GASKET |
- |
- |
| *a |
18 mm (0.709 in.) |
*b |
17 mm (0.669 in.) |
|
N.m (kgf/cm, ft.lbf): Specified torque |
• |
Non-reusable part |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

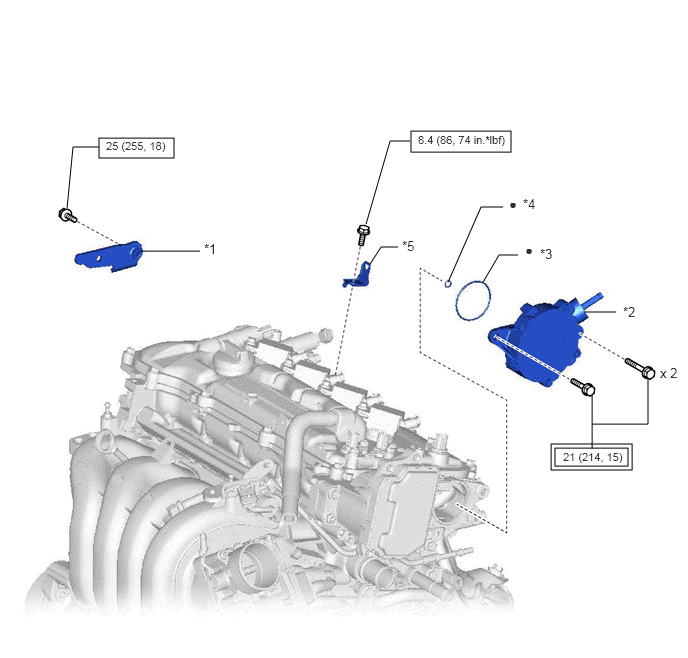

| Callout |
Description |
Callout |
Description |
| *1 |
NO. 2 GENERATOR BRACKET |
*2 |
VACUUM PUMP ASSEMBLY |
| *3 |
NO. 2 O-RING |
*4 |
NO. 3 O-RING |
| *5 |
WIRE HARNESS CLAMP BRACKET |
- |
- |
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) |
|
N.m (kgf/cm, ft.lbf): Specified torque |
| • |
Non-reusable part |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |
| *A |
for CVT |
*B |
for Manual Transaxle |
| *1 |
ENGINE COOLANT TEMPERATURE SENSOR |
*2 |
ENGINE OIL LEVEL DIPSTICK GUIDE |
| *3 |
IGNITION COIL ASSEMBLY |
*4 |
KNOCK CONTROL SENSOR |
| *5 |
NO. 1 VACUUM PUMP BRACKET |
*6 |
NO. 1 WATER BY-PASS PIPE |
| *7 |
NO. 3 WATER BY-PASS HOSE |
*8 |
VENTILATION HOSE |
| *9 |
THERMOSTAT |
*10 |
V-RIBBED BELT TENSIONER ASSEMBLY |
| *11 |
WATER BY-PASS HOSE |
*12 |
WATER INLET |
| *13 |
WATER INLET HOSE |
*14 |
GASKET |
| *15 |
O-RING |
*16 |
ENGINE OIL LEVEL DIPSTICK |
|
N.m (kgf/cm, ft.lbf): Specified torque |
• |
Non-reusable part |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

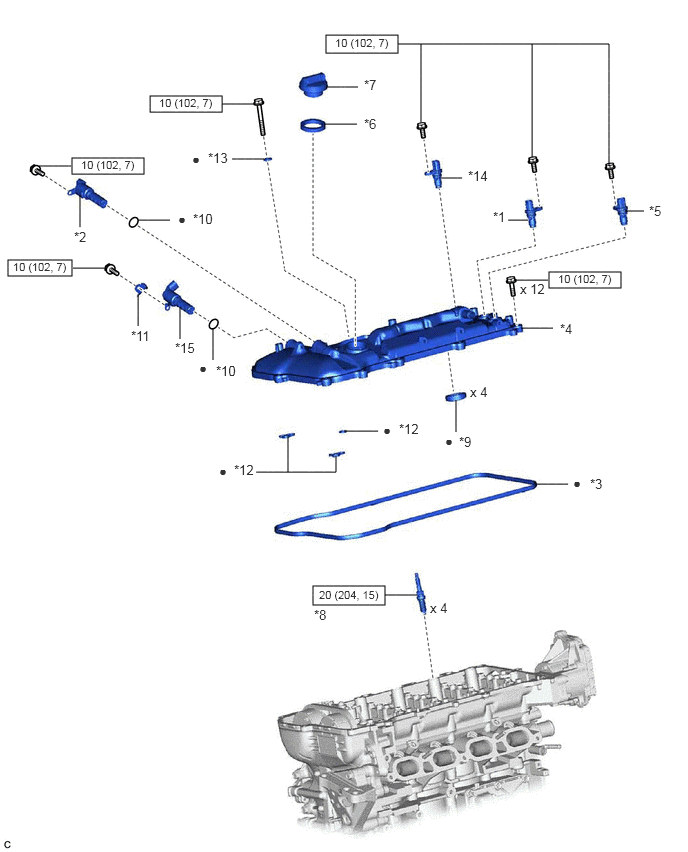

| Callout |
Description |
Callout |
Description |
| *1 |
CAMSHAFT POSITION SENSOR (for Intake Side) |
*2 |
CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (for Intake Side) |
| *3 |
CYLINDER HEAD COVER GASKET |
*4 |
CYLINDER HEAD COVER SUB-ASSEMBLY |
| *5 |
VALVEMATIC SHAFT SENSOR (CAM POSITION SENSOR) |
*6 |
OIL FILLER CAP GASKET |
| *7 |
OIL FILLER CAP SUB-ASSEMBLY |
*8 |
SPARK PLUG |
| *9 |
SPARK PLUG TUBE GASKET |
*10 |
O-RING |
| *11 |
BRACKET |
*12 |
GASKET |
| *13 |
SEAL WASHER |
*14 |
CAMSHAFT POSITION SENSOR (for Exhaust Side) |
| *15 |
CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (for Exhaust Side) |
- |
- |
|
N.m (kgf/cm, ft.lbf): Specified torque |
• |
Non-reusable part |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |
| *1 |
CRANKSHAFT PULLEY |
*2 |
NO. 1 CHAIN TENSIONER ASSEMBLY |
| *3 |
OIL FILTER SUB-ASSEMBLY |
*4 |
OIL FILTER UNION |
| *5 |
TIMING CHAIN COVER OIL SEAL |
*6 |
TIMING CHAIN COVER SUB-ASSEMBLY |
| *7 |
WATER INLET HOUSING |
*8 |
O-RING |
| *9 |
ENGINE WATER PUMP ASSEMBLY |
*10 |
SEAL WASHER |
| *11 |
ENGINE MOUNTING BRACKET RH |
*12 |
BRACKET |
| *13 |
GASKET |
*14 |
OIL FILTER BRACKET |
| *15 |
ENGINE OIL PRESSURE SWITCH ASSEMBLY |
*16 |
ENGINE OIL TEMPERATURE SENSOR |
| *17 |
CRANKSHAFT PULLEY SET BOLT |
*18 |
WATER INLET HOUSING STUD BOLT |
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) |
|
N.m (kgf/cm, ft.lbf): Specified torque |
| • |
Non-reusable part |
|
MP grease |
|
Adhesive 1324 |
* |
Precoated part |
|
Do not apply lubricants to the threaded parts |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |
| *1 |
CHAIN SUB-ASSEMBLY |
*2 |
CHAIN TENSIONER SLIPPER |
| *3 |
CRANKSHAFT POSITION SENSOR |
*4 |
CRANKSHAFT TIMING GEAR KEY |
| *5 |
CRANKSHAFT TIMING SPROCKET |
*6 |
NO. 1 CHAIN VIBRATION DAMPER |
| *7 |
NO. 1 CRANKSHAFT POSITION SENSOR PLATE |
*8 |
NO. 2 CHAIN SUB-ASSEMBLY |
| *9 |
O-RING |
*10 |
OIL PUMP DRIVE GEAR |
| *11 |
OIL PUMP DRIVE SHAFT GEAR |
*12 |
CHAIN DAMPER SPRING |
| *13 |
CHAIN TENSIONER PLATE |
- |
- |
|
N.m (kgf/cm, ft.lbf): Specified torque |
• |
Non-reusable part |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |
| *1 |
CAMSHAFT HOUSING SUB-ASSEMBLY |
*2 |
CAMSHAFT TIMING EXHAUST GEAR ASSEMBLY |
| *3 |
CAMSHAFT TIMING GEAR ASSEMBLY |
*4 |
CONTINUOUSLY VARIABLE VALVE LIFT CONTROLLER ASSEMBLY |
| *5 |
CYLINDER HEAD GASKET |
*6 |
CYLINDER HEAD SUB-ASSEMBLY |
| *7 |
NO. 1 VALVE ROCKER ARM SUB-ASSEMBLY |
*8 |
VALVE LASH ADJUSTER ASSEMBLY |
| *9 |
VALVE ROCKER ARM LOST MOTION DAMPER SUB-ASSEMBLY |
*10 |
VALVE STEM CAP |
| *11 |
PLATE WASHER |
*12 |
VALVE LIFT CONTROL ACTUATOR CONNECTOR |
| *13 |
VALVE LIFT CONTROL ACTUATOR CLIP |
*14 |
STRAIGHT PIN |
| *15 |
O-RING |
*16 |
WIRE HARNESS CLAMP BRACKET |
| *17 |
STUD BOLT |
*18 |
CAMSHAFT HOUSING STRAIGHT PIN |
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) |
|
N.m (kgf/cm, ft.lbf): Specified torque |
| • |
Non-reusable part |
- |
- |
| *T1 |
1st: 49 (500, 36)
2nd: Turn 90°
3rd: Turn 45° |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |
| *1 |
NO. 1 GENERATOR BRACKET |
*2 |
NO. 1 TAPER SCREW PLUG |
| *3 |
NO. 2 OIL PAN SUB-ASSEMBLY |
*4 |
OIL PAN DRAIN PLUG |
| *5 |
OIL PUMP ASSEMBLY |
*6 |
PCV VALVE (VENTILATION VALVE SUB-ASSEMBLY) |
| *7 |
REAR ENGINE OIL SEAL |
*8 |
STIFFENING CRANKCASE ASSEMBLY |
| *9 |
STIFFENING CRANKCASE RING PIN |
*10 |
GASKET |
| *11 |
RING PIN |
*12 |
STUD BOLT |
|
N.m (kgf/cm, ft.lbf): Specified torque |
• |
Non-reusable part |
|
MP grease |
|
Adhesive 1324 |
| * |
Precoated part |
- |
- |
