Components [01/2019 - 11/2022]

WARNING: This page is about a different car, the 2022 Toyota Corolla, 2021 Toyota Corolla, 2020 Toyota Corolla, and 2019 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

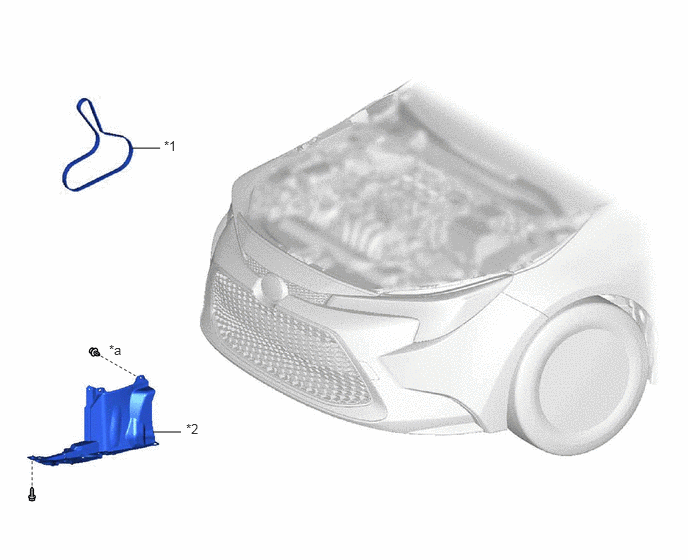

Fig 1: Drive Belt Replacement Components [01/2019 - 11/2022]
GTY848379Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 V-RIBBED BELT *2 REAR ENGINE UNDER COVER RH
*a Type A: x 7
Type B: x 8		 - -
