Components [01/2019 - 11/2022]
WARNING: This page is about a different car, the 2022 Toyota Corolla, 2021 Toyota Corolla, 2020 Toyota Corolla, and 2019 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

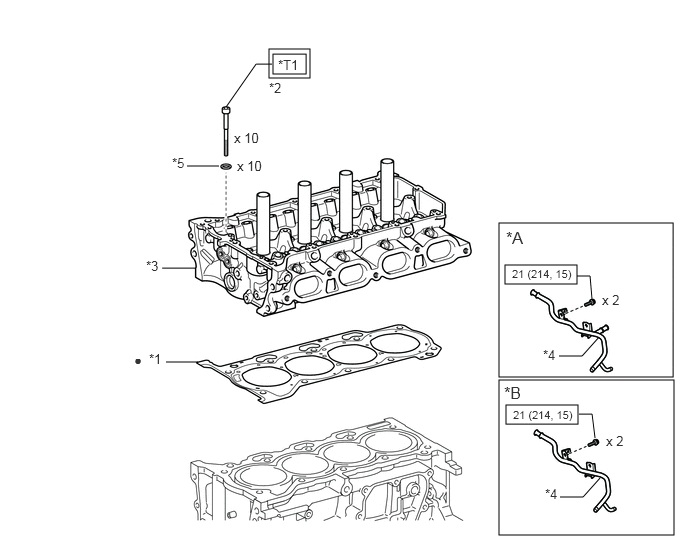

| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | for CVT | *B | for Manual Transaxle |
| *1 | CYLINDER HEAD GASKET | *2 | CYLINDER HEAD SET BOLT |
| *3 | CYLINDER HEAD SUB-ASSEMBLY | *4 | NO. 1 WATER BY-PASS PIPE |
| *5 | PLATE WASHER | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | N.m (kgf/cm, ft.lbf): Specified torque | ||
| • | Non-reusable part | - | - |
| *T1 | 1st: 49 (500, 36) 2nd: Turn 90° 3rd: Turn 45° |
- | - |
