Parts Location [09/2022 - 11/2022]: Illustration
WARNING: This page is about a different car, the 2023 Toyota GR Corolla and 2023 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.
| *A | for Hatchback | - | - |

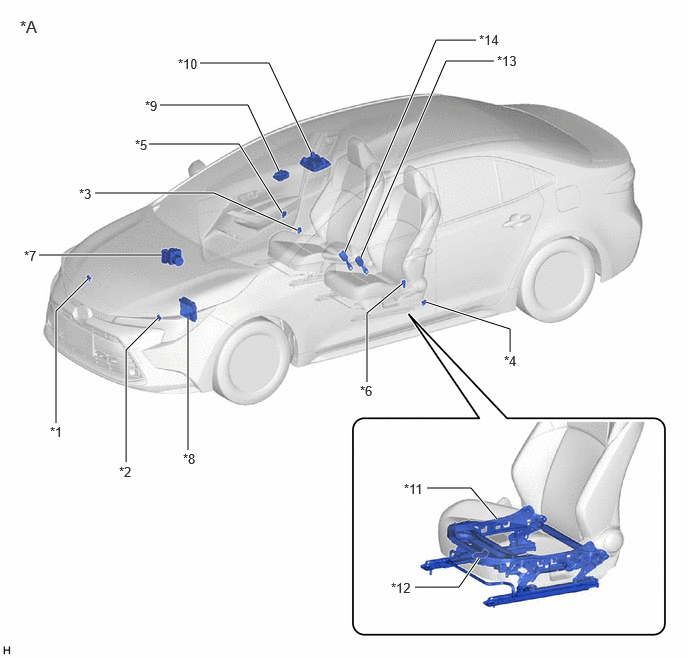

| *1 | FRONT AIRBAG SENSOR RH | *2 | FRONT AIRBAG SENSOR LH |
| *3 | SIDE NO. 1 AIRBAG SENSOR RH | *4 | SIDE NO. 1 AIRBAG SENSOR LH |
| *5 | SIDE AIRBAG PRESSURE SENSOR RH | *6 | SIDE AIRBAG PRESSURE SENSOR LH |
| *7 | BRAKE ACTUATOR ASSEMBLY - SKID CONTROL ECU |
*8 | ECM |
| *9 | FORWARD RECOGNITION CAMERA | *10 | MAP LIGHT ASSEMBLY - PASSENGER AIRBAG ON/OFF INDICATOR |
| *11 | FRONT SEAT ADJUSTER ASSEMBLY LH | *12 | SEAT POSITION SENSOR |
| *13 | FRONT SEAT INNER BELT ASSEMBLY LH - DRIVER SEAT BUCKLE SWITCH |
*14 | FRONT SEAT INNER BELT ASSEMBLY RH - PASSENGER SEAT BUCKLE SWITCH |
| *A | for Sedan | - | - |
| *1 | FRONT AIRBAG SENSOR RH | *2 | FRONT AIRBAG SENSOR LH |
| *3 | SIDE NO. 1 AIRBAG SENSOR RH | *4 | SIDE NO. 1 AIRBAG SENSOR LH |
| *5 | SIDE AIRBAG PRESSURE SENSOR RH | *6 | SIDE AIRBAG PRESSURE SENSOR LH |
| *7 | BRAKE ACTUATOR ASSEMBLY - SKID CONTROL ECU |
*8 | ECM |
| *9 | FORWARD RECOGNITION CAMERA | *10 | MAP LIGHT ASSEMBLY - PASSENGER AIRBAG ON/OFF INDICATOR |
| *11 | FRONT SEAT ADJUSTER ASSEMBLY LH | *12 | SEAT POSITION SENSOR |
| *13 | FRONT SEAT INNER BELT ASSEMBLY LH - DRIVER SEAT BUCKLE SWITCH |
*14 | FRONT SEAT INNER BELT ASSEMBLY RH - PASSENGER SEAT BUCKLE SWITCH |
| *A | for Hatchback | - | - |
| *1 | FRONT SEAT AIRBAG ASSEMBLY RH | *2 | FRONT SEAT AIRBAG ASSEMBLY LH |
| *3 | FRONT SEAT OUTER BELT ASSEMBLY RH | *4 | FRONT SEAT OUTER BELT ASSEMBLY LH |
| *5 | CURTAIN SHIELD AIRBAG ASSEMBLY RH | *6 | CURTAIN SHIELD AIRBAG ASSEMBLY LH |
| *7 | REAR SEAT AIRBAG ASSEMBLY RH | *8 | REAR SEAT AIRBAG ASSEMBLY LH |
| *9 | REAR 3 POINT TYPE SEAT OUTER BELT ASSEMBLY RH (w/ Rear Seat Belt Pretensioner) | *10 | REAR 3 POINT TYPE SEAT OUTER BELT ASSEMBLY LH (w/ Rear Seat Belt Pretensioner) |
| *11 | FRONT SEAT CUSHION AIRBAG ASSEMBLY RH | - | - |
| *A | for Sedan | - | - |
| *1 | FRONT SEAT AIRBAG ASSEMBLY RH | *2 | FRONT SEAT AIRBAG ASSEMBLY LH |
| *3 | FRONT SEAT OUTER BELT ASSEMBLY RH | *4 | FRONT SEAT OUTER BELT ASSEMBLY LH |
| *5 | CURTAIN SHIELD AIRBAG ASSEMBLY RH | *6 | CURTAIN SHIELD AIRBAG ASSEMBLY LH |
| *7 | REAR SEAT AIRBAG ASSEMBLY RH (w/ Rear Seat Side Airbag) | *8 | REAR SEAT AIRBAG ASSEMBLY LH (w/ Rear Seat Side Airbag) |
| *9 | REAR 3 POINT TYPE SEAT OUTER BELT ASSEMBLY RH (w/ Rear Seat Belt Pretensioner) | *10 | REAR 3 POINT TYPE SEAT OUTER BELT ASSEMBLY LH (w/ Rear Seat Belt Pretensioner) |
| *11 | FRONT SEAT CUSHION AIRBAG ASSEMBLY RH | - | - |
| *A | except G16E-GTS | *B | for G16E-GTS |
| *1 | SPIRAL CABLE SUB-ASSEMBLY | *2 | AIRBAG SENSOR ASSEMBLY |
| *3 | HORN BUTTON ASSEMBLY | *4 | INSTRUMENT PANEL PASSENGER AIRBAG ASSEMBLY |
| *5 | LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY | *6 | COMBINATION METER ASSEMBLY - SRS WARNING LIGHT |
| *7 | HYBRID VEHICLE CONTROL ECU (for HV Model) | *8 | DCM (TELEMATICS TRANSCEIVER) (w/ Manual (SOS) Switch) |
| *9 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) | *10 | DLC3 |
| *11 | POWER DISTRIBUTION BOX ASSEMBLY - A/BAG-IGR FUSE - METER-IGR FUSE - ECU-IGR NO. 3 FUSE |
- | - |
