Steering Pad Switch Circuit [09/2022 - 11/2022]: Wiring Diagram

WARNING: This page is about a different car, the 2023 Toyota GR Corolla and 2023 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

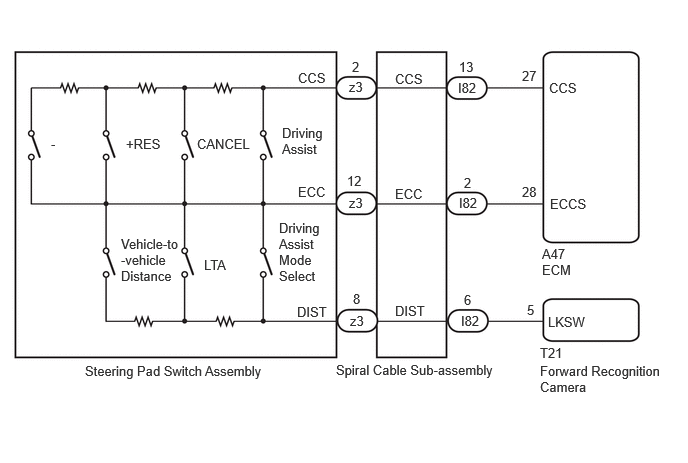

  1. for M20A-FKS
    GTY1121160Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. for G16E-GTS
    GTY1122176Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

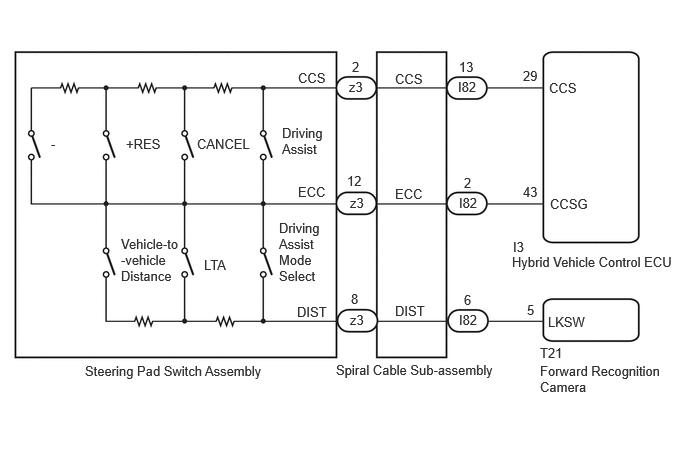

  3. for HV Model
    GTY1121159Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
