Components [09/2024 - ]
WARNING: This page is about a different car, the 2025 Toyota GR Corolla, 2024 Toyota GR Corolla, and 2023 Toyota GR Corolla. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

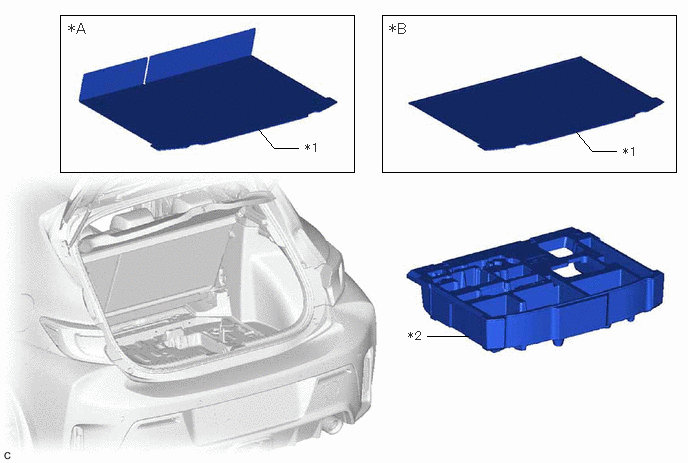

| Callout |
Description |
Callout |
Description |
| *A |
w/ Rear Seat Assembly |
*B |
w/o Rear Seat Assembly |
| *1 |
DECK BOARD ASSEMBLY |
*2 |
SPARE WHEEL CUSHION |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

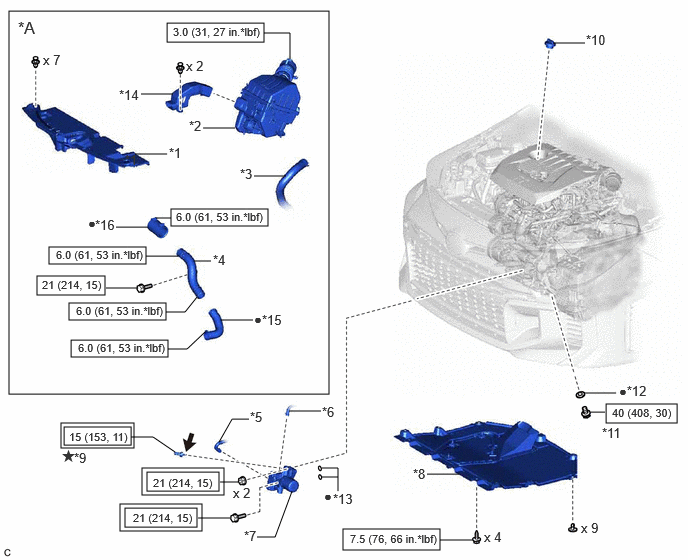

| Callout |
Description |
Callout |
Description |
| *A |
for Automatic Transaxle |
- |
- |
| *1 |
RADIATOR SUPPORT OPENING COVER |
*2 |
AIR CLEANER WITH AIR CLEANER HOSE |
| *3 |
NO. 1 RADIATOR HOSE |
*4 |
NO. 2 AIR TUBE |
| *5 |
NO. 5 WATER BY-PASS HOSE |
*6 |
NO. 6 WATER BY-PASS HOSE |
| *7 |
OIL FILTER BRACKET SUB-ASSEMBLY |
*8 |
NO. 1 ENGINE UNDER COVER ASSEMBLY |
| *9 |
OIL PRESSURE AND TEMPERATURE SENSOR |
*10 |
OIL FILLER CAP ASSEMBLY |
| *11 |
OIL PAN DRAIN PLUG |
*12 |
GASKET |
| *13 |
O-RING |
*14 |
INLET NO. 1 AIR CLEANER |
| *15 |
NO. 4 AIR HOSE |
*16 |
NO. 5 AIR HOSE |
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
| • |
Non-reusable part |
|
Adhesive 1344 |
| * |
Precoated part |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

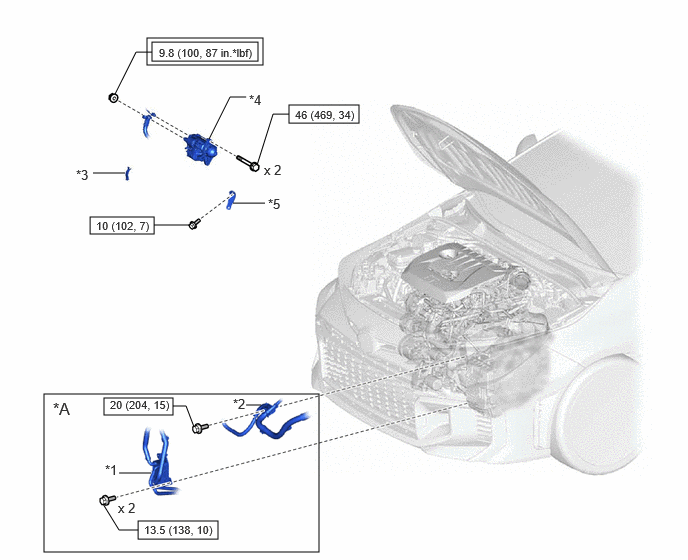

| Callout |
Description |
Callout |
Description |
| *A |
for Automatic Transaxle |
- |
- |
| *1 |
TRANSMISSION OIL COOLER |
*2 |
ENGINE WIRE |
| *3 |
FLYWHEEL HOUSING SIDE COVER |
*4 |
STARTER ASSEMBLY |
| *5 |
WIRE HARNESS CLAMP BRACKET |
- |
- |
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

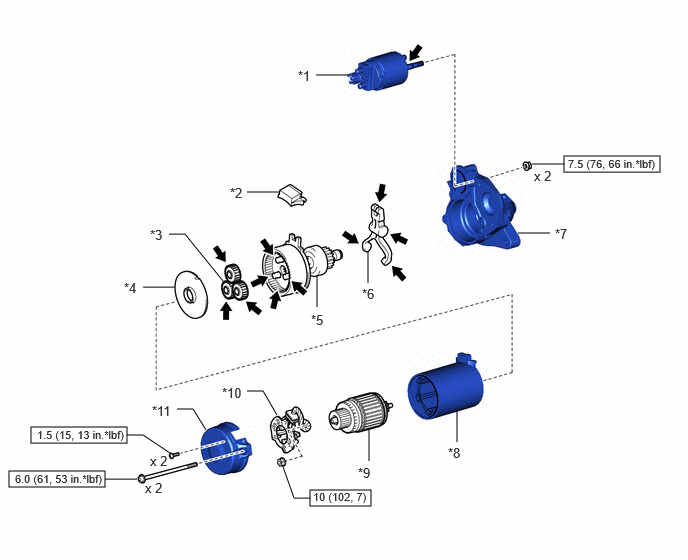

| Callout |
Description |
Callout |
Description |
| *1 |
MAGNET STARTER SWITCH ASSEMBLY |
*2 |
RUBBER SEAL |
| *3 |
PLANETARY GEAR |
*4 |
STARTER ARMATURE PLATE |
| *5 |
STARTER CENTER BEARING CLUTCH SUB-ASSEMBLY |
*6 |
PINION DRIVE LEVER |
| *7 |
STARTER DRIVE HOUSING ASSEMBLY |
*8 |
STARTER YOKE ASSEMBLY |
| *9 |
STARTER ARMATURE ASSEMBLY |
*10 |
STARTER BRUSH HOLDER ASSEMBLY |
| *11 |
STARTER COMMUTATOR END FRAME ASSEMBLY |
- |
- |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
|
High-temperature grease |
