Components [09/2022 - 11/2022]
WARNING: This page is about a different car, the 2025 Toyota GR Corolla, 2024 Toyota GR Corolla, and 2023 Toyota GR Corolla. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

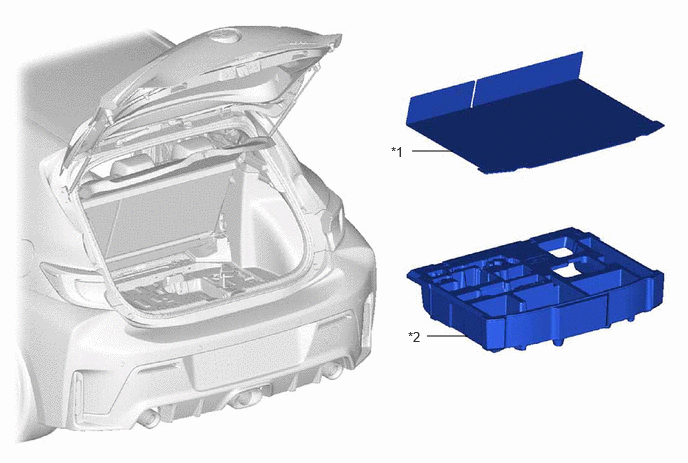

| Callout |
Description |
Callout |
Description |
| *A |
for Type A |
- |
- |
| *1 |
DECK BOARD ASSEMBLY |
*2 |
SPARE WHEEL CUSHION |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

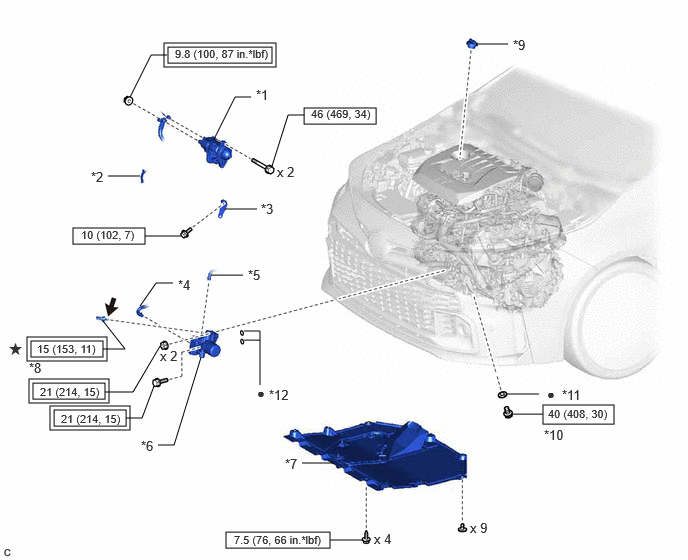

| Callout |
Description |
Callout |
Description |
| *1 |
STARTER ASSEMBLY |
*2 |
FLYWHEEL HOUSING SIDE COVER |
| *3 |
WIRE HARNESS CLAMP BRACKET |
*4 |
NO. 5 WATER BY-PASS HOSE |
| *5 |
NO. 6 WATER BY-PASS HOSE |
*6 |
OIL FILTER BRACKET SUB-ASSEMBLY |
| *7 |
NO. 1 ENGINE UNDER COVER ASSEMBLY |
*8 |
OIL PRESSURE AND TEMPERATURE SENSOR |
| *9 |
OIL FILLER CAP ASSEMBLY |
*10 |
OIL PAN DRAIN PLUG |
| *11 |
GASKET |
*12 |
O-RING |
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
| • |
Non-reusable part |
|
Adhesive 1344 |
| * |
Precoated part |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |
| *1 |
MAGNET STARTER SWITCH ASSEMBLY |
*2 |
RUBBER SEAL |
| *3 |
PLANETARY GEAR |
*4 |
STARTER ARMATURE PLATE |
| *5 |
STARTER CENTER BEARING CLUTCH SUB-ASSEMBLY |
*6 |
PINION DRIVE LEVER |
| *7 |
STARTER DRIVE HOUSING ASSEMBLY |
*8 |
STARTER YOKE ASSEMBLY |
| *9 |
STARTER ARMATURE ASSEMBLY |
*10 |
STARTER BRUSH HOLDER ASSEMBLY |
| *11 |
STARTER COMMUTATOR END FRAME ASSEMBLY |
- |
- |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
|
High-temperature grease |
