Removal [09/2022 - ]: Procedure

WARNING: This page is about a different car, the 2025 Toyota GR Corolla, 2024 Toyota GR Corolla, and 2023 Toyota GR Corolla. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE LOWER CENTER INSTRUMENT PANEL FINISH PANEL

    Refer to PROCEDURE - Step 3 [09/2022 - 11/2022] , or refer to PROCEDURE - Step 3 [11/2022 - 09/2024] , or refer to PROCEDURE - Step 3 [09/2024 - ]

  2. REMOVE ENGINE SWITCH

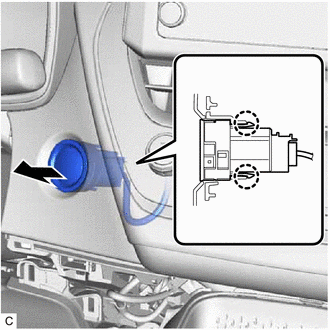

    1. Disengage the 2 claws.
      GTY911133Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

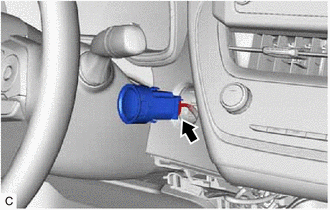

    2. Disconnect the engine switch connector to remove the engine switch.
      GTY911132Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
