DTC P1602-00: Deterioration of Battery Low Capacity [09/2022 - ]: Procedure

WARNING: This page is about a different car, the 2025 Toyota GR Corolla, 2024 Toyota GR Corolla, and 2023 Toyota GR Corolla. However, it is still accessible from the selected car via links, so may be relevant.

CHECK CHARGING SYSTEM
Refer to ON-VEHICLE INSPECTION [09/2022 - ]

Result

Proceed to

OK

NG

Result:

NG

REPAIR OR REPLACE CHARGING SYSTEM

Result:

OK

See step 2

CHECK HARNESS AND CONNECTOR (POWER SOURCE CIRCUIT)

Disconnect the ECM connector.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

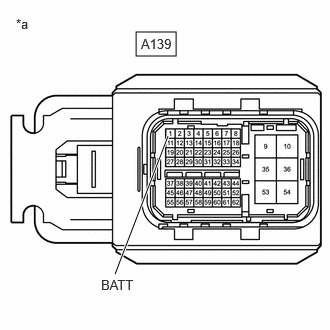

*a	Front view of wire harness connector (to ECM)

Measure the voltage according to the value(s) in the table below.

Standard Voltage

Tester Connection	Condition	Specified Condition
A139-1 (BATT) - Body ground	Always	11 to 14 V

Result

Proceed to
OK
NG

Result:

CHECK FOR INTERMITTENT PROBLEMS. Refer to HOW TO PROCEED WITH TROUBLESHOOTING [06/2018 - ]

Result:

REPAIR OR REPLACE HARNESS OR CONNECTOR
