Terminals Of ECM [09/2022 - ]
WARNING: This page is about a different car, the 2025 Toyota GR Corolla, 2024 Toyota GR Corolla, and 2023 Toyota GR Corolla. However, it is still accessible from the selected car via links, so may be relevant.
- CHECK ECM
HINT:

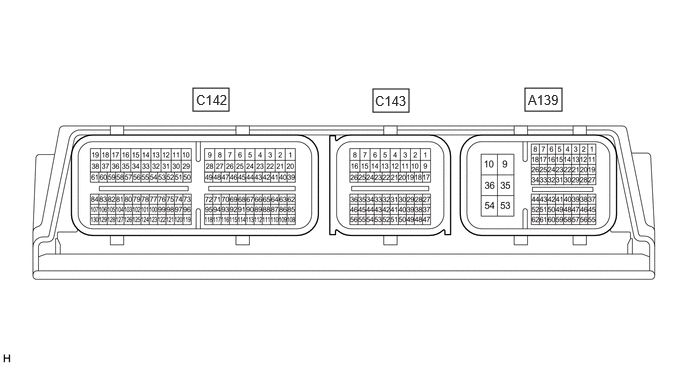

The standard normal voltage between each pair of ECM terminals is shown in the table below. The appropriate conditions for checking each pair of terminals are also indicated. The result of checks should be compared with the standard normal voltage for that pair of terminals, displayed in the Specified Condition column. The illustration above can be used as a reference to identify the ECM terminal locations.
Terminal No. (Symbol) Terminal Description Condition Specified Condition A139-1 (BATT) - A139-10 (E1) Battery (for measuring battery voltage and for ECM memory) Always 11 to 14 V A139-10 (E1) - Body ground Ground Always Below 1 Ω C142-62 (LIN) - Body ground LIN communication line Ignition switch off
(while LIN communication stopped)10 kΩ or higher
