Inspection [09/2022 - ]: Procedure
WARNING: This page is about a different car, the 2025 Toyota GR Corolla, 2024 Toyota GR Corolla, and 2023 Toyota GR Corolla. However, it is still accessible from the selected car via links, so may be relevant.
- INSPECT VACUUM REGULATING VALVE ASSEMBLY
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition 1 - 2 20°C (68°F) 11.1 to 12.5 Ω If the result is not as specified, replace the vacuum regulating valve assembly.
- Check the operation of the vacuum regulating valve assembly.
- Using a vacuum pump, apply a vacuum of 67 kPa (503 mmHg, 19.8 in. Hg) to the port (F) and check that the vacuum regulating valve assembly operates normally.

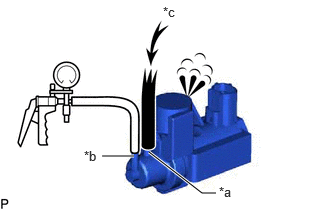

*a Port (E) *b Port (F) *c Air - Check that air flows from the filter when air is blown into the port (E).
HINT:
When air is blown into the port (E), the vacuum of the port (F) decreases.
- Apply auxiliary battery voltage between the terminals, and check that air flows from the port (F) when air is blown into the port (E).
*a Port (E) *b Port (F) *c Air
- Using a vacuum pump, apply a vacuum of 67 kPa (503 mmHg, 19.8 in. Hg) to the port (F) and check that the vacuum regulating valve assembly operates normally.
- Measure the resistance according to the value(s) in the table below.
