Removal [09/2022 - 11/2022]: Procedure

WARNING: This page is about a different car, the 2025 Toyota GR Corolla, 2024 Toyota GR Corolla, and 2023 Toyota GR Corolla. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE INTAKE MANIFOLD

    Refer to REMOVAL [09/2022 - 11/2022]

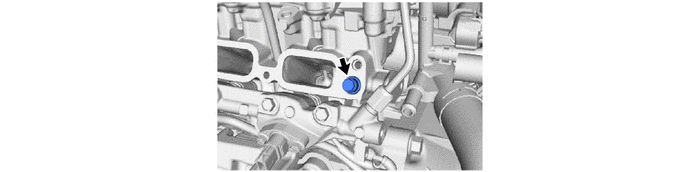

  2. REMOVE PCV VALVE (VENTILATION VALVE SUB-ASSEMBLY)
    1. GTY1108473Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
