Components [09/2024 - ]
WARNING: This page is about a different car, the 2025 Toyota GR Corolla, 2024 Toyota GR Corolla, and 2023 Toyota GR Corolla. However, it is still accessible from the selected car via links, so may be relevant.

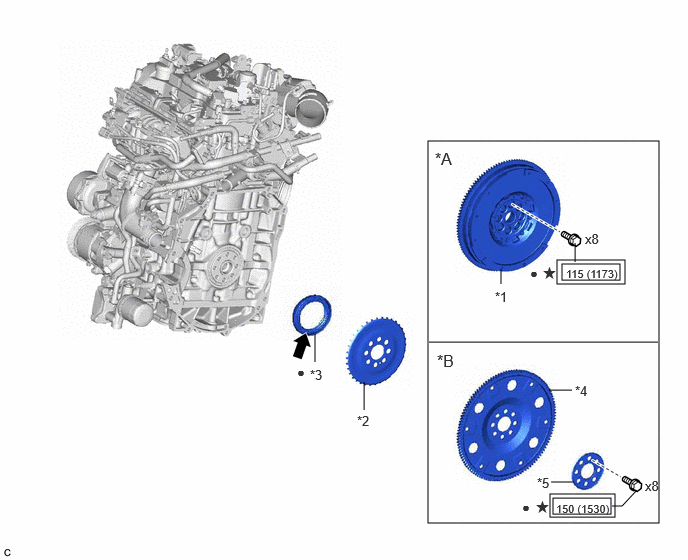

| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | for Manual Transaxle | *B | for Automatic Transaxle |
| *1 | FLYWHEEL SUB-ASSEMBLY | *2 | NO. 1 CRANKSHAFT POSITION SENSOR PLATE |
| *3 | REAR ENGINE OIL SEAL | *4 | DRIVE PLATE AND RING GEAR SUB-ASSEMBLY |
| *5 | REAR DRIVE PLATE SPACER | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | • | Non-reusable part | |
| MP grease | * | Precoated part |
