Fig 1: Front Crankshaft Oil Seal Replacement Components With Torque Specifications [11/2022 - 09/2024] (1 Of 2)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | w/ Engine Under Cover Air Guide | - | - |
| *1 | FRONT FENDER SPLASH SHIELD SUB-ASSEMBLY RH | *2 | INLET HOSE |
| *3 | WINDSHIELD WASHER JAR ASSEMBLY | - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

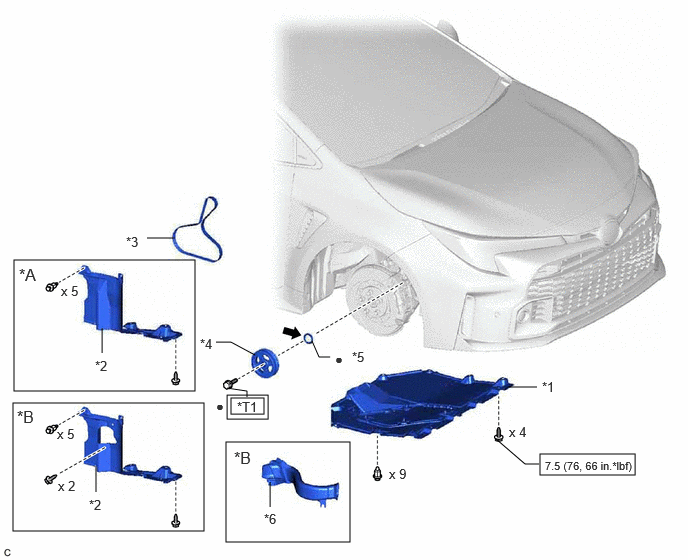

Fig 2: Front Crankshaft Oil Seal Replacement Components With Torque Specifications [11/2022 - 09/2024] (2 Of 2)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | w/o Engine Under Cover Air Guide | *B | w/ Engine Under Cover Air Guide |
| *1 | NO. 1 ENGINE UNDER COVER ASSEMBLY | *2 | REAR ENGINE UNDER COVER RH |
| *3 | FAN AND GENERATOR V BELT | *4 | CRANKSHAFT PULLEY ASSEMBLY |
| *5 | TIMING CHAIN COVER OIL SEAL | *6 | NO. 2 ENGINE UNDER COVER AIR GUIDE |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | N*m (kgf*cm, ft.*lbf): Specified torque | ||
| • | Non-reusable part | MP grease | |
| *T1 | 1st: 260 (2651, 192) 2nd: Turn 90° |
- | - |
