Components [09/2022 - 11/2022]
WARNING: This page is about a different car, the 2025 Toyota GR Corolla, 2024 Toyota GR Corolla, and 2023 Toyota GR Corolla. However, it is still accessible from the selected car via links, so may be relevant.

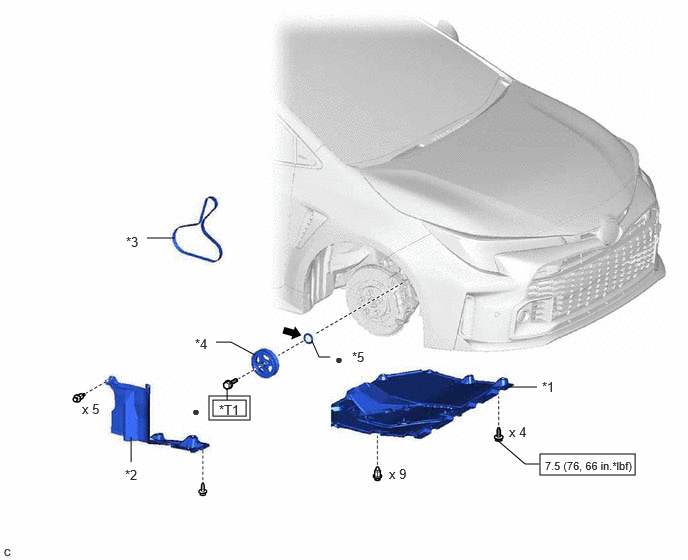

Fig 1: Front Crankshaft Oil Seal Replacement Components With Torque Specifications [09/2022 - 11/2022]
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | NO. 1 ENGINE UNDER COVER ASSEMBLY | *2 | REAR ENGINE UNDER COVER RH |
| *3 | FAN AND GENERATOR V BELT | *4 | CRANKSHAFT PULLEY ASSEMBLY |
| *5 | TIMING CHAIN COVER OIL SEAL | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | N*m (kgf*cm, ft.*lbf): Specified torque | ||
| • | Non-reusable part | MP grease | |
| *T1 | 1st: 260 (2651, 192) 2nd: Turn 90° |
- | - |
