Components [11/2022 - 09/2024]

WARNING: This page is about a different car, the 2025 Toyota GR Corolla, 2024 Toyota GR Corolla, and 2023 Toyota GR Corolla. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Engine Assembly Replacement Components [11/2022 - 09/2024] (1 Of 9)
GTY1106442Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*A for Type A *B w/ Rear Seat Assembly
*C w/o Rear Seat Assembly - -
*1 DECK BOARD ASSEMBLY *2 SPARE WHEEL CUSHION

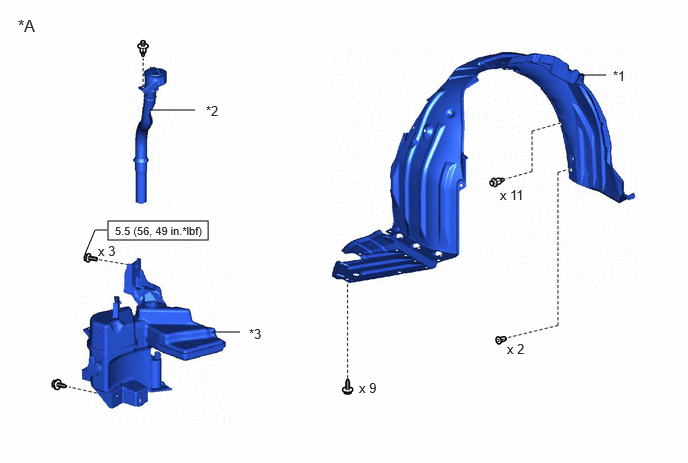

Fig 2: Engine Assembly Replacement Components With Torque Specifications [11/2022 - 09/2024] (2 Of 9)
GTY1104181Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*A w/ Engine Under Cover Air Guide - -
*1 FRONT FENDER SPLASH SHIELD SUB-ASSEMBLY RH *2 INLET HOSE
*3 WINDSHIELD WASHER JAR ASSEMBLY - -
N*m (kgf*cm, ft.*lbf): Specified torque - -

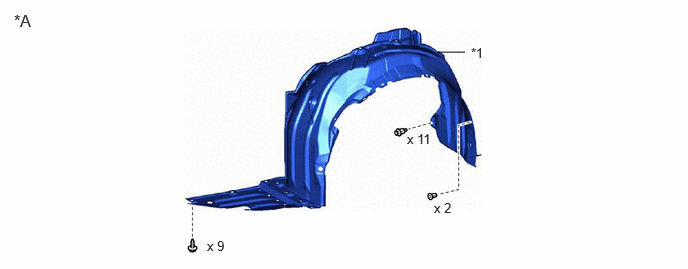

Fig 3: Engine Assembly Replacement Components [11/2022 - 09/2024] (3 Of 9)
GTY1105111Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*A w/ Engine Under Cover Air Guide - -
*1 FRONT FENDER SPLASH SHIELD SUB-ASSEMBLY LH - -

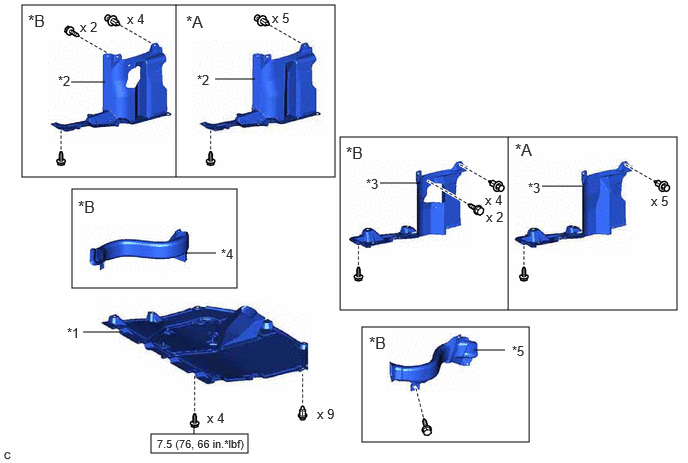

Fig 4: Engine Assembly Replacement Components With Torque Specifications [11/2022 - 09/2024] (4 Of 9)
GTY1107811Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*A w/o Engine Under Cover Air Guide *B w/ Engine Under Cover Air Guide
*1 NO. 1 ENGINE UNDER COVER ASSEMBLY *2 REAR ENGINE UNDER COVER RH
*3 REAR ENGINE UNDER COVER LH *4 NO. 2 ENGINE UNDER COVER AIR GUIDE
*5 NO. 3 ENGINE UNDER COVER AIR GUIDE - -
N*m (kgf*cm, ft.*lbf): Specified torque - -

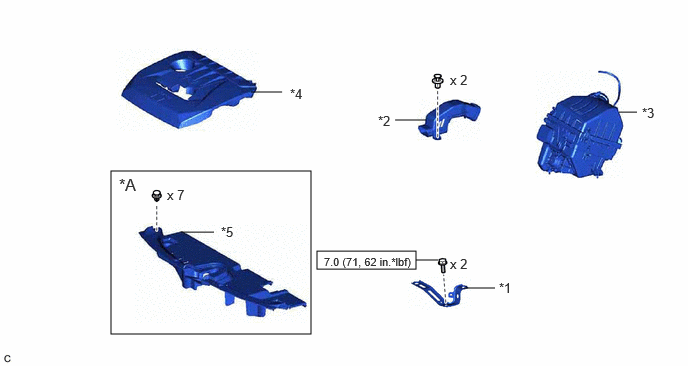

Fig 5: Engine Assembly Replacement Components With Torque Specifications [11/2022 - 09/2024] (5 Of 9)
GTY1251712Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*A w/o Engine Under Cover Air Guide - -
*1 AIR CLEANER BRACKET *2 NO. 1 AIR CLEANER INLET
*3 AIR CLEANER WITH AIR CLEANER HOSE *4 NO. 1 ENGINE COVER SUB-ASSEMBLY
*5 RADIATOR SUPPORT OPENING COVER - -
N*m (kgf*cm, ft.*lbf): Specified torque - -
Fig 6: Engine Assembly Replacement Components With Torque Specifications [11/2022 - 09/2024] (6 Of 9)
GTY1108491Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 NO. 1 RELAY BLOCK COVER *2 COVER RELAY BLOCK UPR
*3 WIRE HARNESS *4 NO. 1 RADIATOR HOSE
*5 NO. 2 RADIATOR HOSE *6 NO. 2 AIR TUBE
*7 ECM *8 TRANSMISSION CONTROL CABLE ASSEMBLY
*9 CHECK VALVE TO CONNECTOR TUBE HOSE *10 NO. 1 WATER BY-PASS HOSE
*11 NO. 2 WATER BY-PASS HOSE *12 NO. 1 FUEL VAPOR FEED HOSE
*13 OUTLET HEATER WATER HOSE *14 INLET HEATER WATER HOSE
*15 NO. 1 FUEL PIPE CLAMP *16 FUEL TUBE SUB-ASSEMBLY
*17 SUCTION HOSE SUB-ASSEMBLY *18 DISCHARGE HOSE SUB-ASSEMBLY
*19 COLUMN HOLE COVER SILENCER SHEET *20 NO. 2 STEERING INTERMEDIATE SHAFT ASSEMBLY
*21 O-RING *22 NO. 4 AIR HOSE
*23 NO. 5 AIR HOSE - -
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) N*m (kgf*cm, ft.*lbf): Specified torque
• Non-reusable part Compressor oil ND-OIL 12 or equivalent
Fig 7: Engine Assembly Replacement Components With Torque Specifications [11/2022 - 09/2024] (7 Of 9)
GTY1107016Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 NO. 1 AIR TUBE *2 NO. 1 CLUTCH HOSE
*3 ENGINE ASSEMBLY WITH TRANSAXLE *4 ENGINE HANGER
*5 ENGINE MOUNTING INSULATOR LH *6 RESERVE TANK ASSEMBLY
*7 ENGINE MOUNTING INSULATOR SUB-ASSEMBLY RH *8 REARE SIDE RAIL REINFORCEMENT SUB-ASSEMBLY LH
*9 REARE SIDE RAIL REINFORCEMENT SUB-ASSEMBLY RH *10 ENGINE MOUNTING BRACKET CAP
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) N*m (kgf*cm, ft.*lbf): Specified torque
* For use with a union nut wrench • Non-reusable part
Fig 8: Engine Assembly Replacement Components With Torque Specifications [11/2022 - 09/2024] (8 Of 9)
GTY1251902Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 NO. 1 FUEL VAPOR FEED HOSE *2 STARTER ASSEMBLY
*3 FLYWHEEL HOUSING SIDE COVER *4 FAN AND GENERATOR V BELT
*5 V-RIBBED BELT TENSIONER ASSEMBLY *6 GENERATOR ASSEMBLY
*7 ENGINE WIRE *8 FLYWHEEL HOUSING UNDER COVER
*9 TIMING GEAR COVER INSULATOR - -
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) N*m (kgf*cm, ft.*lbf): Specified torque
Fig 9: Engine Assembly Replacement Components With Torque Specifications [11/2022 - 09/2024] (9 Of 9)
GTY1106068Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 EXHAUST MANIFOLD CONVERTER SUB-ASSEMBLY *2 PROPELLER SHAFT HEAT INSULATOR
*3 MANUAL TRANSAXLE ASSEMBLY *4 CLUTCH COVER ASSEMBLY
*5 FLYWHEEL SUB-ASSEMBLY *6 NO. 1 CRANKSHAFT POSITION SENSOR PLATE
*7 ENGINE HANGER *8 CLUTCH DISC ASSEMBLY
*9 FRONT SUSPENSION CROSSMEMBER SUB-ASSEMBLY - -
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) N*m (kgf*cm, ft.*lbf): Specified torque
• Non-reusable part * Precoated part
