Components [09/2024 - ]
WARNING: This page is about a different car, the 2025 Toyota GR Corolla, 2024 Toyota GR Corolla, and 2023 Toyota GR Corolla. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

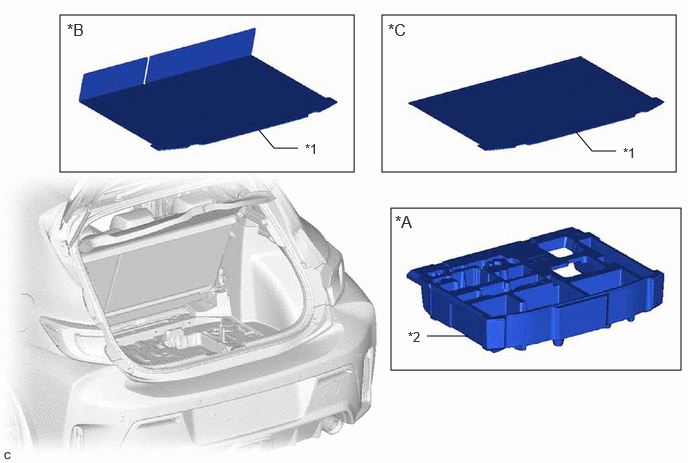

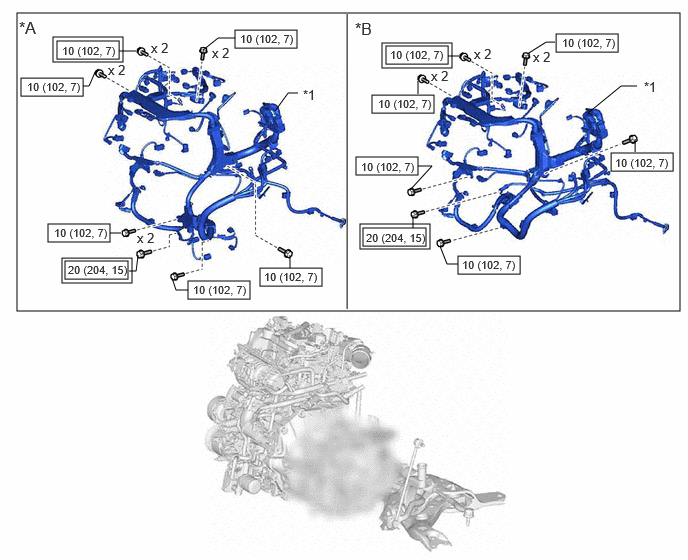

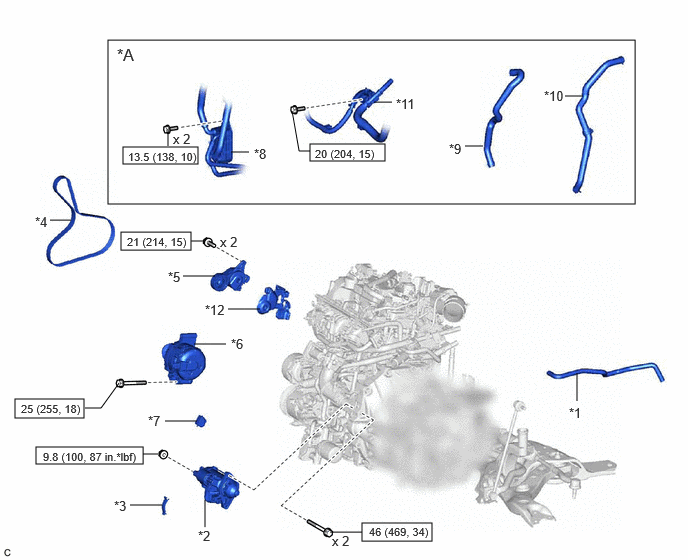

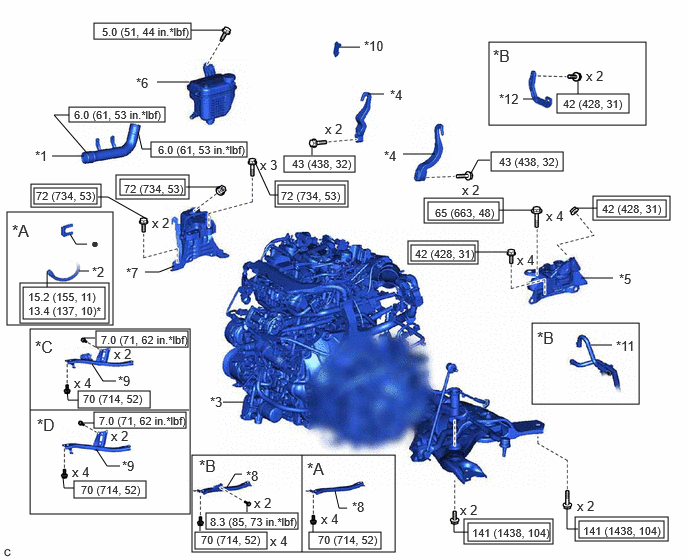

| Callout |
Description |
Callout |
Description |
| *A |
for Type A |
*B |
w/ Rear Seat Assembly |
| *C |
w/o Rear Seat Assembly |
- |
- |
| *1 |
DECK BOARD ASSEMBLY |
*2 |
SPARE WHEEL CUSHION |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

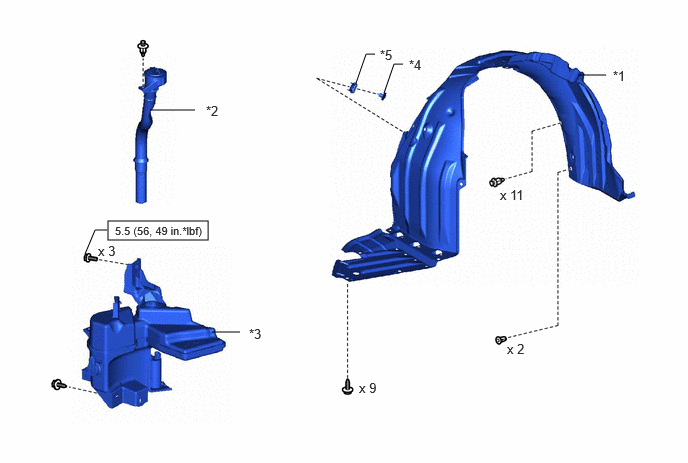

| Callout |
Description |
Callout |
Description |
| *1 |
FRONT FENDER SPLASH SHIELD SUB-ASSEMBLY RH |
*2 |
INLET HOSE |
| *3 |
WINDSHIELD WASHER JAR ASSEMBLY |
*4 |
PIN HOLD CLIP |
| *5 |
FRONT FENDER LINER RETAINER |
- |
- |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

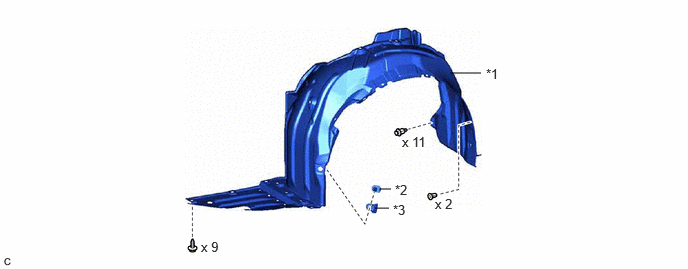

| Callout |
Description |
Callout |
Description |
| *1 |
FRONT FENDER SPLASH SHIELD SUB-ASSEMBLY LH |
*2 |
PIN HOLD CLIP |
| *3 |
FRONT FENDER LINER RETAINER |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

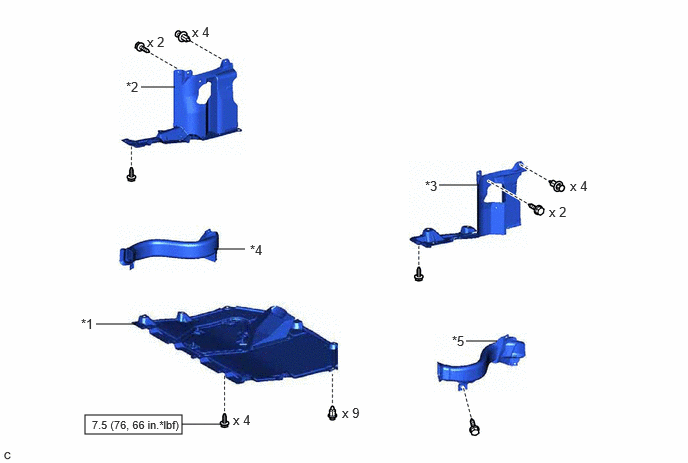

| Callout |
Description |
Callout |
Description |
| *1 |
NO. 1 ENGINE UNDER COVER ASSEMBLY |
*2 |
REAR ENGINE UNDER COVER RH |
| *3 |
REAR ENGINE UNDER COVER LH |
*4 |
NO. 2 ENGINE UNDER COVER AIR GUIDE |
| *5 |
NO. 3 ENGINE UNDER COVER AIR GUIDE |
- |
- |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

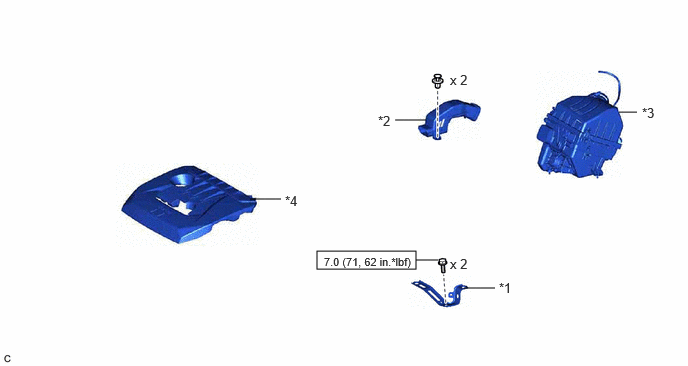

| Callout |
Description |
Callout |
Description |
| *1 |
AIR CLEANER BRACKET |
*2 |
NO. 1 AIR CLEANER INLET |
| *3 |
AIR CLEANER WITH AIR CLEANER HOSE |
*4 |
NO. 1 ENGINE COVER SUB-ASSEMBLY |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

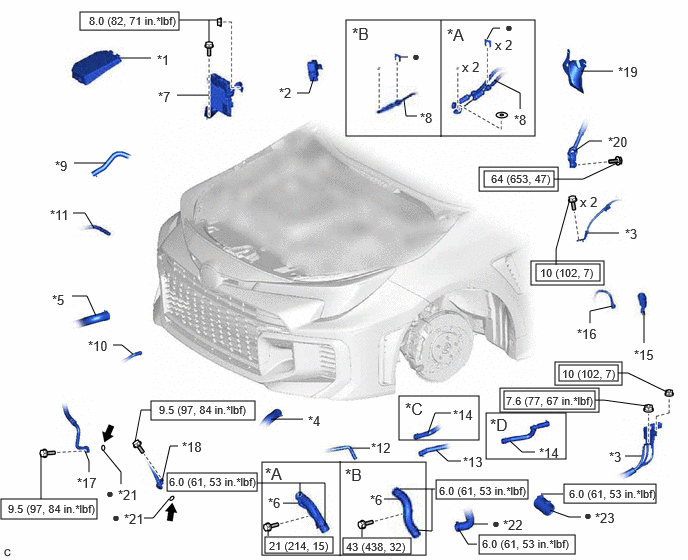

| Callout |
Description |
Callout |
Description |
| *A |
for Manual Transaxle |
*B |
for Automatic Transaxle |
| *C |
except Manual Transaxle (w/ Sub Radiator) |
*D |
for Manual Transaxle (w/ Sub Radiator) |
| *1 |
NO. 1 RELAY BLOCK COVER |
*2 |
COVER RELAY BLOCK UPR |
| *3 |
WIRE HARNESS |
*4 |
NO. 1 RADIATOR HOSE |
| *5 |
NO. 2 RADIATOR HOSE |
*6 |
NO. 2 AIR TUBE |
| *7 |
ECM |
*8 |
TRANSMISSION CONTROL CABLE ASSEMBLY |
| *9 |
CHECK VALVE TO CONNECTOR TUBE HOSE |
*10 |
NO. 1 WATER BY-PASS HOSE |
| *11 |
NO. 2 WATER BY-PASS HOSE |
*12 |
NO. 1 FUEL VAPOR FEED HOSE |
| *13 |
OUTLET HEATER WATER HOSE |
*14 |
INLET HEATER WATER HOSE |
| *15 |
NO. 1 FUEL PIPE CLAMP |
*16 |
FUEL TUBE SUB-ASSEMBLY |
| *17 |
SUCTION HOSE SUB-ASSEMBLY |
*18 |
DISCHARGE HOSE SUB-ASSEMBLY |
| *19 |
COLUMN HOLE COVER SILENCER SHEET |
*20 |
NO. 2 STEERING INTERMEDIATE SHAFT ASSEMBLY |
| *21 |
O-RING |
*22 |
NO. 4 AIR HOSE |
| *23 |
NO. 5 AIR HOSE |
- |
- |
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
| • |
Non-reusable part |
|
Compressor oil ND-OIL 12 or equivalent |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |
| *A |
for Manual Transaxle |
*B |
for Automatic Transaxle |
| *C |
w/ Sub Radiator |
*D |
w/o Sub Radiator |
| *1 |
NO. 1 AIR TUBE |
*2 |
NO. 1 CLUTCH HOSE |
| *3 |
ENGINE ASSEMBLY WITH TRANSAXLE |
*4 |
ENGINE HANGER |
| *5 |
ENGINE MOUNTING INSULATOR LH |
*6 |
RESERVE TANK ASSEMBLY |
| *7 |
ENGINE MOUNTING INSULATOR SUB-ASSEMBLY RH |
*8 |
REAR SIDE RAIL REINFORCEMENT SUB-ASSEMBLY LH |
| *9 |
REAR SIDE RAIL REINFORCEMENT SUB-ASSEMBLY RH |
*10 |
ENGINE MOUNTING BRACKET CAP |
| *11 |
NO. 1 TRANSMISSION OIL COOLER HOSE ASSEMBLY |
*12 |
FLEXIBLE HOSE BRACKET |
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
| * |
For use with a union nut wrench |
• |
Non-reusable part |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |
| *A |
for Automatic Transaxle |
- |
- |
| *1 |
NO. 1 FUEL VAPOR FEED HOSE |
*2 |
STARTER ASSEMBLY |
| *3 |
FLYWHEEL HOUSING SIDE COVER |
*4 |
FAN AND GENERATOR V BELT |
| *5 |
V-RIBBED BELT TENSIONER ASSEMBLY |
*6 |
GENERATOR ASSEMBLY |
| *7 |
ENGINE WIRE |
*8 |
FLYWHEEL HOUSING UNDER COVER |
| *9 |
NO. 5 WATER BY-PASS HOSE |
*10 |
NO. 4 WATER BY-PASS HOSE |
| *11 |
ENGINE WIRE |
*12 |
TIMING GEAR COVER INSULATOR |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |
| *A |
for Manual Transaxle |
*B |
for Automatic Transaxle |
| *1 |
ENGINE WIRE |
- |
- |
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

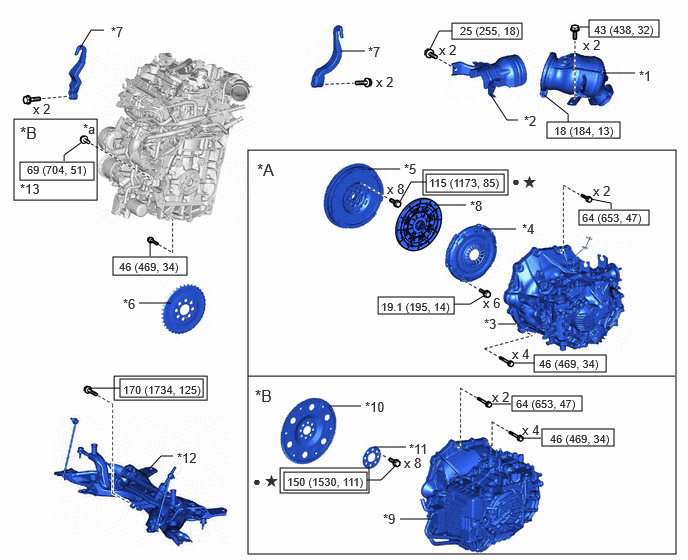

| Callout |
Description |
Callout |
Description |
| *A |
for Manual Transaxle |
*B |
for Automatic Transaxle |
| *1 |
EXHAUST MANIFOLD CONVERTER SUB-ASSEMBLY |
*2 |
PROPELLER SHAFT HEAT INSULATOR |
| *3 |
MANUAL TRANSAXLE ASSEMBLY |
*4 |
CLUTCH COVER ASSEMBLY |
| *5 |
FLYWHEEL SUB-ASSEMBLY |
*6 |
NO. 1 CRANKSHAFT POSITION SENSOR PLATE |
| *7 |
ENGINE HANGER |
*8 |
CLUTCH DISC ASSEMBLY |
| *9 |
AUTOMATIC TRANSAXLE ASSEMBLY |
*10 |
DRIVE PLATE and RING GEAR SUB-ASSEMBLY |
| *11 |
REAR DRIVE PLATE SPACER |
*12 |
FRONT SUSPENSION CROSSMEMBER SUB-ASSEMBLY |
| *13 |
DRIVE PLATE AND TORQUE CONVERTER ASSEMBLY SETTING BOLT |
- |
- |
| *a |
BLACK COLOR: x1
SILVER COLOR: x5 |
- |
- |
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
| • |
Non-reusable part |
* |
Precoated part |
