Components [11/2022 - 09/2024]
WARNING: This page is about a different car, the 2025 Toyota GR Corolla, 2024 Toyota GR Corolla, and 2023 Toyota GR Corolla. However, it is still accessible from the selected car via links, so may be relevant.

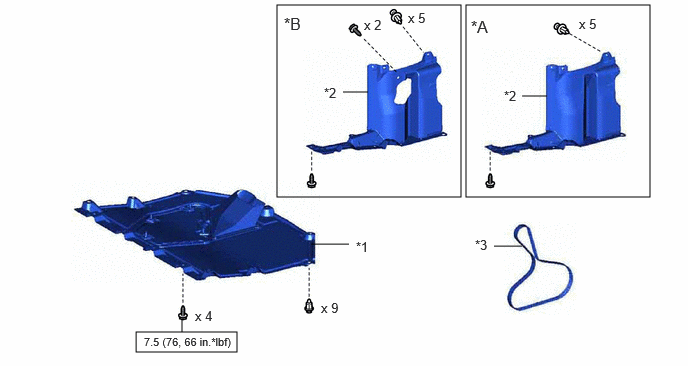

| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | w/o Engine Under Cover Air Guide | *B | w/ Engine Under Cover Air Guide |
| *1 | NO. 1 ENGINE UNDER COVER ASSEMBLY | *2 | REAR ENGINE UNDER COVER RH |
| *3 | FAN AND GENERATOR V BELT | *4 | NO. 2 ENGINE UNDER COVER AIR GUIDE |
| N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
