Removal [09/2024 - ]: Procedure

WARNING: This page is about a different car, the 2025 Toyota GR Corolla, 2024 Toyota GR Corolla, and 2023 Toyota GR Corolla. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE INTAKE CAMSHAFT SUB-ASSEMBLY

    See step  36

  2. REMOVE NO. 1 CAMSHAFT BEARING CAP

    Refer to PROCEDURE - Step 40

  3. REMOVE NO. 5 CAMSHAFT BEARING CAP

    Refer to PROCEDURE - Step 41

  4. REMOVE NO. 1 VALVE ROCKER ARM SUB-ASSEMBLY

    Refer to PROCEDURE - Step 42

  5. REMOVE VALVE LASH ADJUSTER ASSEMBLY

    Refer to PROCEDURE - Step 43

  6. REMOVE VALVE STEM CAP

    Refer to PROCEDURE - Step 44

  7. REMOVE CYLINDER HEAD SUB-ASSEMBLY

    Refer to PROCEDURE - Step 45

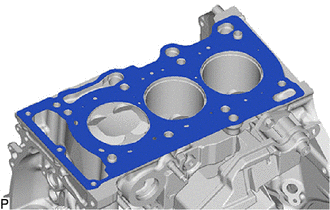

  8. REMOVE CYLINDER HEAD GASKET
    1. Remove the cylinder head gasket from the cylinder block sub-assembly.
      GTY1020407Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. INSPECT CYLINDER HEAD SET BOLT

    Refer to PROCEDURE - Step 12

  10. INSPECT CYLINDER HEAD SUB-ASSEMBLY

    Refer to PROCEDURE - Step 1
