Components [09/2022 - 11/2022]
WARNING: This page is about a different car, the 2025 Toyota GR Corolla, 2024 Toyota GR Corolla, and 2023 Toyota GR Corolla. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

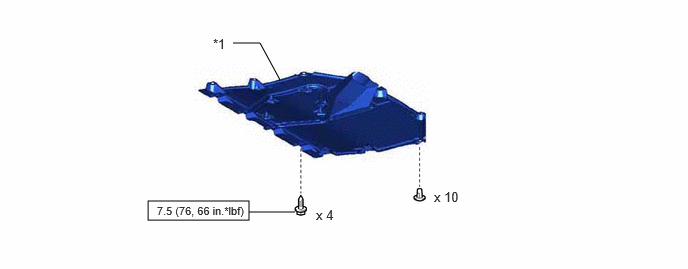

| Callout |
Description |
Callout |
Description |
| *1 |
NO. 1 ENGINE UNDER COVER ASSEMBLY |
- |
- |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

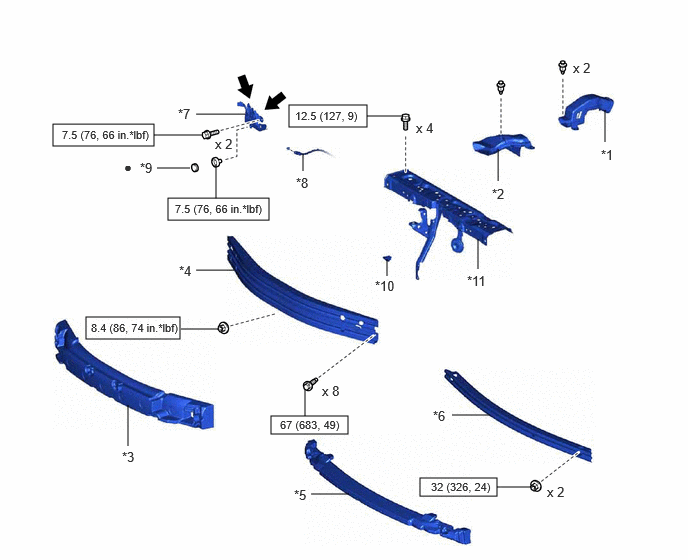

| Callout |
Description |
Callout |
Description |
| *1 |
INLET NO. 1 AIR CLEANER |
*2 |
INLET NO. 3 AIR CLEANER |
| *3 |
FRONT BUMPER ENERGY ABSORBER |
*4 |
FRONT BUMPER REINFORCEMENT |
| *5 |
LOWER FRONT BUMPER ABSORBER |
*6 |
NO. 2 FRONT BUMPER REINFORCEMENT |
| *7 |
HOOD LOCK ASSEMBLY |
*8 |
HOOD LOCK CONTROL CABLE ASSEMBLY |
| *9 |
HOOD LOCK NUT CAP |
*10 |
THERMISTOR ASSEMBLY |
| *11 |
UPPER RADIATOR SUPPORT SUB-ASSEMBLY |
- |
- |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
• |
Non-reusable part |
|
MP grease |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

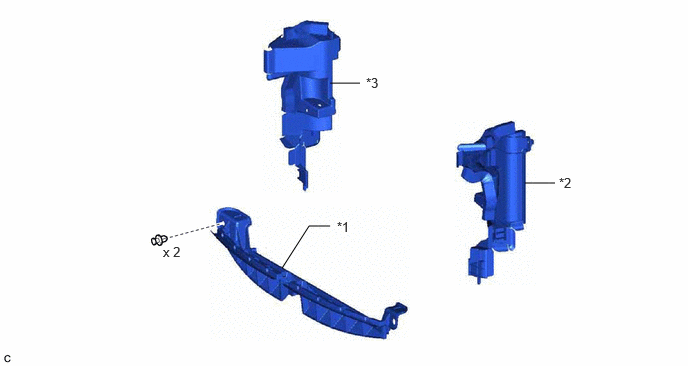

| Callout |
Description |
Callout |
Description |
| *1 |
INTERCOOLER PLATE |
*2 |
NO. 1 RADIATOR AIR GUIDE LH |
| *3 |
NO. 1 RADIATOR AIR GUIDE RH |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

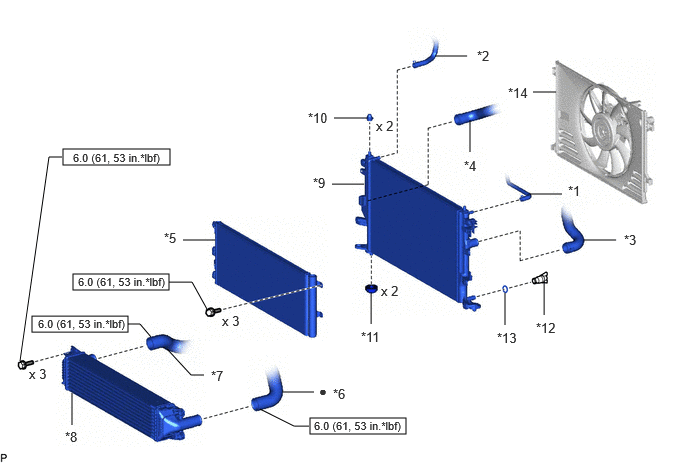

| Callout |
Description |
Callout |
Description |
| *1 |
WATER BY-PASS HOSE |
*2 |
NO. 3 WATER BY-PASS HOSE |
| *3 |
NO. 1 RADIATOR HOSE |
*4 |
NO. 2 RADIATOR HOSE |
| *5 |
COOLER CONDENSER ASSEMBLY |
*6 |
NO. 4 AIR HOSE |
| *7 |
NO. 3 AIR HOSE |
*8 |
INTERCOOLER ASSEMBLY |
| *9 |
RADIATOR ASSEMBLY |
*10 |
RADIATOR SUPPORT CUSHION |
| *11 |
LOWER RADIATOR SUPPORT |
*12 |
RADIATOR DRAIN COCK PLUG |
| *13 |
O-RING |
*14 |
FAN SHROUD |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
• |
Non-reusable part |
