Components [09/2024 - ]
WARNING: This page is about a different car, the 2025 Toyota GR Corolla, 2024 Toyota GR Corolla, and 2023 Toyota GR Corolla. However, it is still accessible from the selected car via links, so may be relevant.

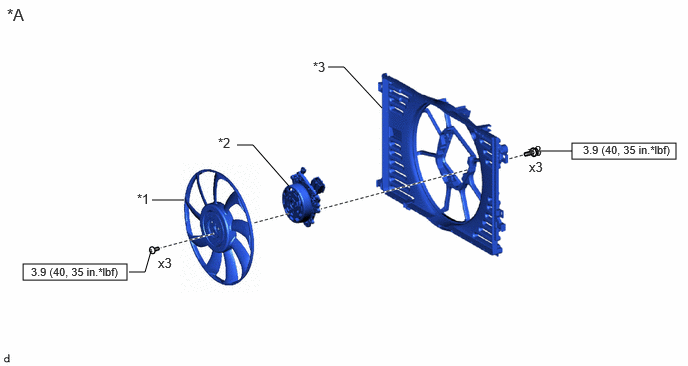

| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | for 330 W Cooling Fan Motor | - | - |
| *1 | FAN | *2 | COOLING FAN MOTOR |
| *3 | FAN SHROUD | - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

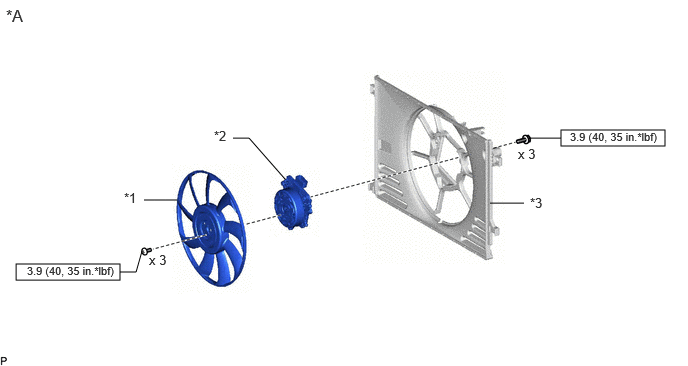

| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | for 500 W Cooling Fan Motor | - | - |
| *1 | FAN | *2 | COOLING FAN MOTOR |
| *3 | FAN SHROUD | - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
