Components [09/2022 - 09/2024]

WARNING: This page is about a different car, the 2025 Toyota GR Corolla, 2024 Toyota GR Corolla, and 2023 Toyota GR Corolla. However, it is still accessible from the selected car via links, so may be relevant.

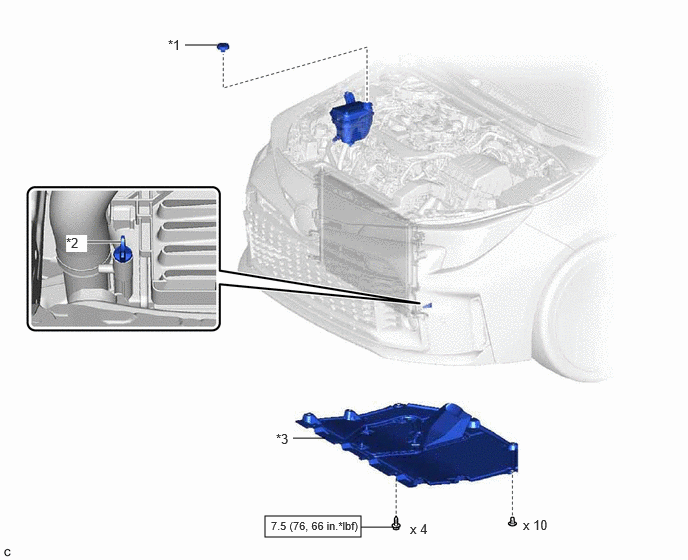

Fig 1: Coolant Replacement Components With Torque Specifications [09/2022 - 09/2024]
GTY1104262Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 RESERVE TANK CAP *2 RADIATOR DRAIN COCK PLUG
*3 NO. 1 ENGINE UNDER COVER ASSEMBLY - -
N*m (kgf*cm, ft.*lbf): Specified torque - -
