Removal [09/2022 - ]: Procedure

WARNING: This page is about a different car, the 2025 Toyota GR Corolla, 2024 Toyota GR Corolla, and 2023 Toyota GR Corolla. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE MASS AIR FLOW METER SUB-ASSEMBLY

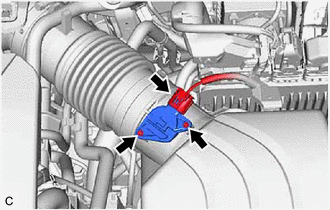

    1. Disconnect the mass air flow meter sub-assembly connector.
      GTY1107365Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 screws and mass air flow meter sub-assembly from the air cleaner cap sub-assembly.
      NOTE:

      If the mass air flow meter sub-assembly has been struck or dropped, replace it.
