Components [09/2022 - ]

WARNING: This page is about a different car, the 2025 Toyota GR Corolla, 2024 Toyota GR Corolla, and 2023 Toyota GR Corolla. However, it is still accessible from the selected car via links, so may be relevant.

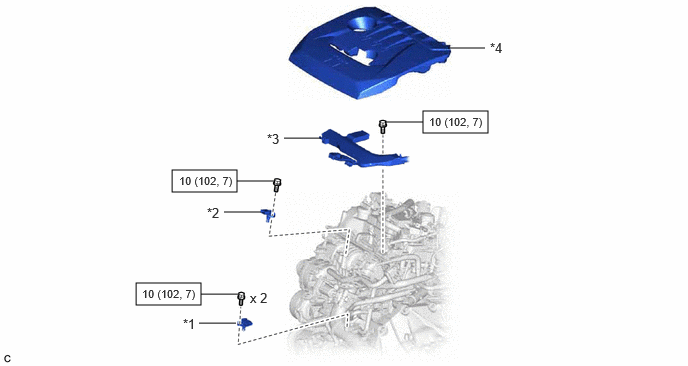

Fig 1: Manifold Absolute Pressure Sensor Replacement Components With Torque Specifications
GTY1104468Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 NO. 2 TURBO PRESSURE SENSOR *2 NO. 1 TURBO PRESSURE SENSOR
*3 ENGINE WIRE *4 NO. 1 ENGINE COVER SUB-ASSEMBLY
N*m (kgf*cm, ft.*lbf): Specified torque - -
