Components [11/2022 - ]
WARNING: This page is about a different car, the 2025 Toyota GR Corolla, 2024 Toyota GR Corolla, and 2023 Toyota GR Corolla. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | for Type A | *B | w/ Rear Seat Assembly |
| *C | w/o Rear Seat Assembly | - | - |
| *1 | DECK BOARD ASSEMBLY | *2 | SPARE WHEEL CUSHION |

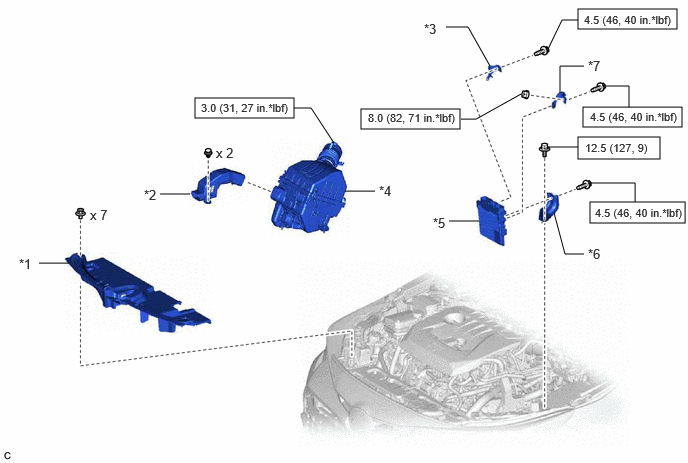

| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | RADIATOR SUPPORT OPENING COVER | *2 | INLET NO. 1 AIR CLEANER |
| *3 | WIRE HARNESS CLAMP BRACKET | *4 | AIR CLEANER WITH AIR CLEANER HOSE |
| *5 | ECM | *6 | NO. 1 ECM BRACKET |
| *7 | NO. 2 ECM BRACKET | - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
