Components [09/2022 - ]
WARNING: This page is about a different car, the 2025 Toyota GR Corolla, 2024 Toyota GR Corolla, and 2023 Toyota GR Corolla. However, it is still accessible from the selected car via links, so may be relevant.

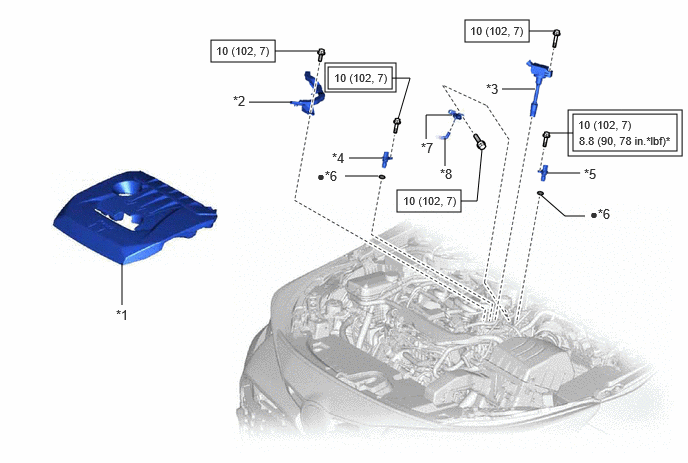

| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | NO. 1 ENGINE COVER SUB-ASSEMBLY | *2 | ENGINE WIRE |
| *3 | IGNITION COIL ASSEMBLY | *4 | CAMSHAFT POSITION SENSOR (for Intake Side) |
| *5 | CAMSHAFT POSITION SENSOR (for Exhaust Side) | *6 | O-RING |
| *7 | VACUUM SENSOR ASSEMBLY | *8 | VACUUM HOSE |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | N*m (kgf*cm, ft.*lbf): Specified torque | ||
| * | For use with a union nut wrench | • | Non-reusable part |
