Components [09/2022 - ]

WARNING: This page is about a different car, the 2025 Toyota GR Corolla, 2024 Toyota GR Corolla, and 2023 Toyota GR Corolla. However, it is still accessible from the selected car via links, so may be relevant.

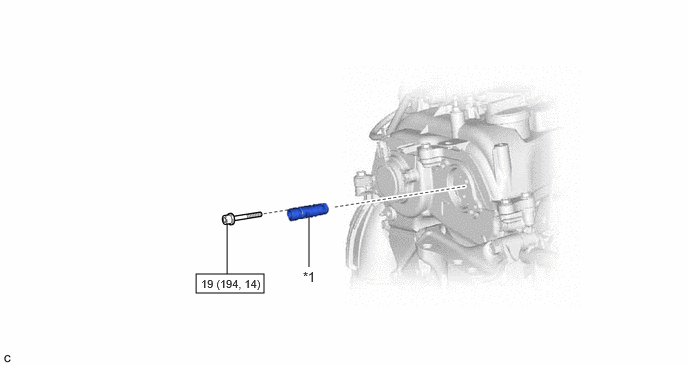

Fig 1: Camshaft Oil Control Valve (For Intake Side) Replacement Components With Torque Specifications
GTY1108544Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 CAMSHAFT TIMING VALVE ASSEMBLY - -
N*m (kgf*cm, ft.*lbf): Specified torque - -
