Components [03/2019 - 11/2022]

WARNING: This page is about a different car, the 2022 Toyota Corolla, 2021 Toyota Corolla, 2020 Toyota Corolla, and 2019 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Thermostat Replacement Components With Torque Specifications [03/2019 - 11/2022] (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*A	Type A	*B	Type B
*C	Type C	-	-
*1	NO. 1 ENGINE UNDER COVER ASSEMBLY	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

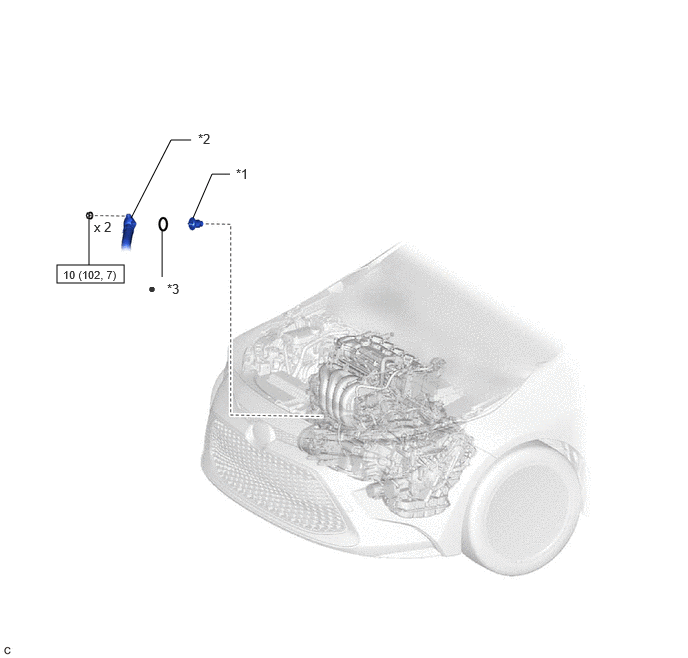

Fig 2: Thermostat Replacement Components With Torque Specifications [03/2019 - 11/2022] (2 Of 2)

Callout	Description	Callout	Description
*1	THERMOSTAT	*2	WATER INLET
*3	GASKET	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part
