Components [01/2019 - 11/2022]
WARNING: This page is about a different car, the 2022 Toyota Corolla, 2021 Toyota Corolla, 2020 Toyota Corolla, and 2019 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

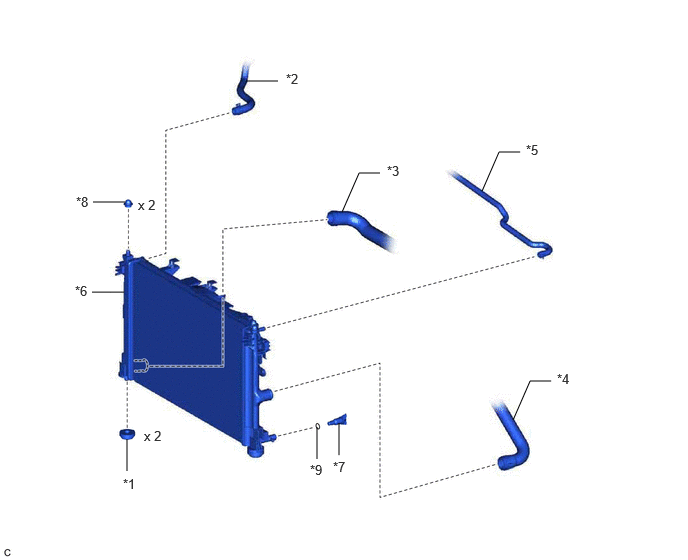

| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | LOWER RADIATOR SUPPORT | *2 | NO. 1 WATER BY-PASS HOSE |
| *3 | NO. 2 RADIATOR HOSE | *4 | NO. 3 RADIATOR HOSE |
| *5 | NO. 3 WATER BY-PASS HOSE | *6 | RADIATOR ASSEMBLY |
| *7 | RADIATOR DRAIN COCK PLUG | *8 | RADIATOR SUPPORT CUSHION |
| *9 | O-RING | - | - |
