Components [01/2019 - 03/2019]
WARNING: This page is about a different car, the 2022 Toyota Corolla, 2021 Toyota Corolla, 2020 Toyota Corolla, and 2019 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

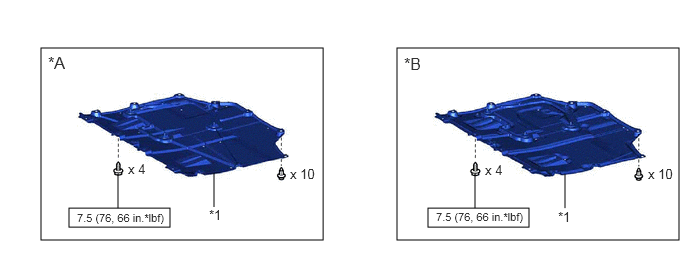

Fig 1: Cooling Fan Motor Replacement Components With Torque Specifications [01/2019 - 03/2019] (1 Of 4)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | Type A | *B | Type B |
| *1 | NO. 1 ENGINE UNDER COVER ASSEMBLY | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |

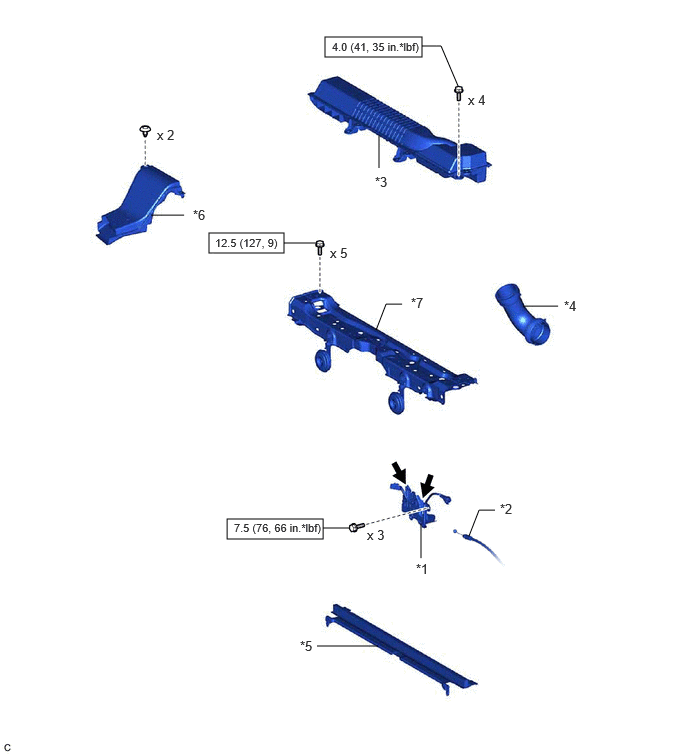

Fig 2: Cooling Fan Motor Replacement Components With Torque Specifications [01/2019 - 03/2019] (2 Of 4)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | HOOD LOCK ASSEMBLY | *2 | HOOD LOCK CONTROL CABLE ASSEMBLY |
| *3 | INLET NO. 1 AIR CLEANER | *4 | INLET NO. 2 AIR CLEANER |
| *5 | NO. 2 RADIATOR AIR GUIDE | *6 | INLET NO. 3 AIR CLEANER |
| *7 | UPPER RADIATOR SUPPORT SUB-ASSEMBLY | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | MP grease |

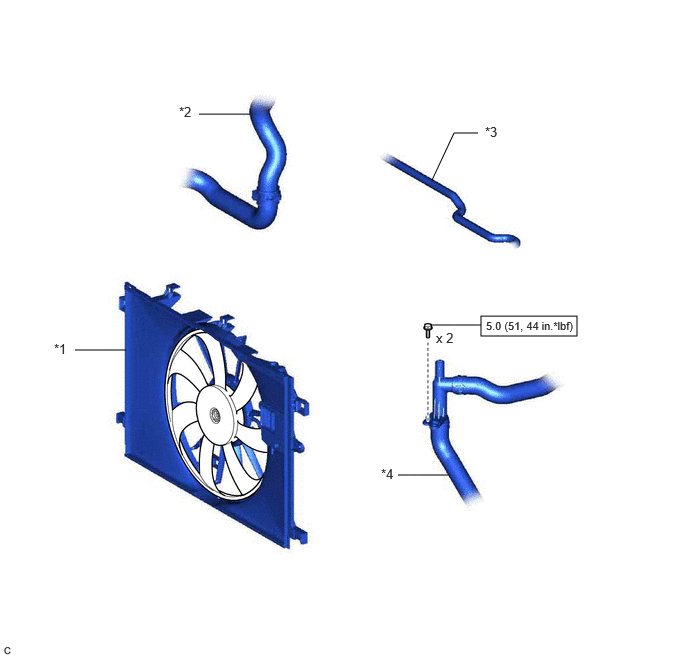

Fig 3: Cooling Fan Motor Replacement Components With Torque Specifications [01/2019 - 03/2019] (3 Of 4)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | FAN WITH MOTOR ASSEMBLY | *2 | NO. 2 RADIATOR HOSE |
| *3 | NO. 3 WATER BY-PASS HOSE | *4 | NO. 3 RADIATOR HOSE |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |

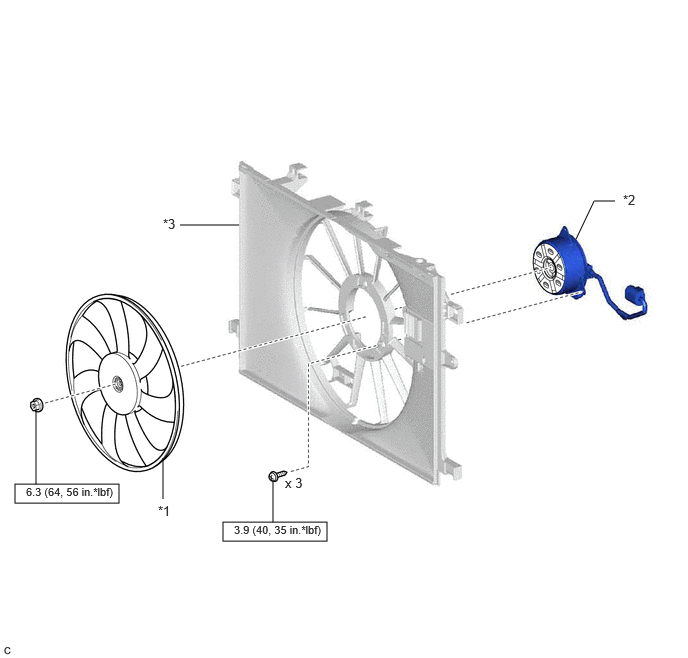

Fig 4: Cooling Fan Motor Replacement Components With Torque Specifications [01/2019 - 03/2019] (4 Of 4)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | FAN | *2 | COOLING FAN MOTOR |
| *3 | FAN SHROUD | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |
