Removal [09/2024 - ]: Procedure

WARNING: This page is about a different car, the 2025 Toyota GR Corolla. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE TRANSMISSION WIRE

    Refer to REMOVAL [09/2024 - ]

  2. REMOVE TRANSMISSION VALVE BODY ASSEMBLY

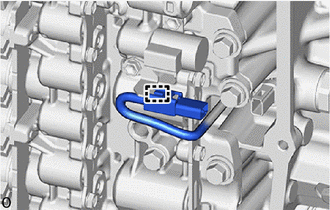

    1. Disengage the clamp to disconnect the transmission revolution sensor (NC) wire connector.
      GTY1251491Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

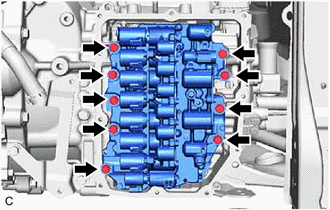

    2. Remove the 9 bolts and transmission valve body assembly from the automatic transaxle case sub-assembly.
      GTY1251916Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

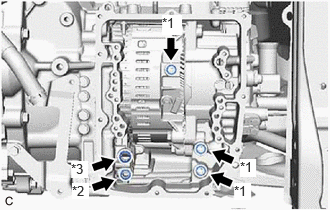

    3. Remove the 2 transaxle case gaskets from the automatic transaxle case sub-assembly.
      GTY1252415Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Transaxle Case Gasket
      *2 No. 1 Front Oil Pump Cover Gasket
      *3 No. 2 Front Oil Pump Cover Gasket
    4. Remove the transaxle case gasket from the counter drive gear sub-assembly.
    5. Remove the No. 1 front oil pump cover gasket from the front oil pump assembly.
    6. Remove the No. 2 front oil pump cover gasket from the front oil pump assembly.
