Reassembly [09/2024 - ]: Procedure

WARNING: This page is about a different car, the 2025 Toyota GR Corolla. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL SOLENOID (SL) VALVE
    1. Coat the solenoid (SL) valve with Toyota Genuine ATF WS.
      GTY1251495Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the solenoid (SL) valve to the transmission valve body assembly with the bolt.

      Torque: 7.0 N.m (71 kgf/cm, 62 in.lbf)

  2. INSTALL SOLENOID (SLT) VALVE
    1. Coat the solenoid (SLT) valve with Toyota Genuine ATF WS and install it to the transmission valve body assembly.
      GTY1251494Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL SOLENOID (SL2) VALVE
    1. Coat the solenoid (SL2) valve with Toyota Genuine ATF WS and install it to the transmission valve body assembly.
      GTY1251496Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL SOLENOID (SL1) VALVE
    1. Coat the solenoid (SL1) valve with Toyota Genuine ATF WS and install it to the transmission valve body assembly.
      GTY1252475Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. INSTALL SOLENOID (SL3) VALVE
    1. Coat the solenoid (SL3) valve with Toyota Genuine ATF WS and install it to the transmission valve body assembly.
      GTY1251500Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. INSTALL SOLENOID (SL4) VALVE
    1. Coat the solenoid (SL4) valve with Toyota Genuine ATF WS and install it to the transmission valve body assembly.
      GTY1251502Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. INSTALL SOLENOID (SL6) VALVE
    1. Coat the solenoid (SL6) valve with Toyota Genuine ATF WS and install it to the transmission valve body assembly.
      GTY1251501Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. INSTALL SOLENOID (SL5) VALVE
    1. Coat the solenoid (SL5) valve with Toyota Genuine ATF WS and install it to the transmission valve body assembly
      GTY1251506Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. INSTALL SOLENOID (SLU) VALVE
    1. Coat the solenoid (SLU) valve with Toyota Genuine ATF WS and install it to the transmission valve body assembly.
      GTY1251505Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

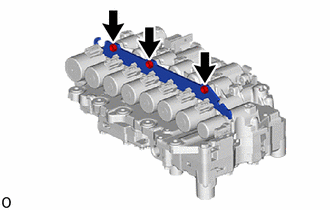

  10. INSTALL SOLENOID LOCK PLATE
    1. Install the solenoid lock plate to the transmission valve body assembly with the 3 bolts.
      GTY1252472Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 7.0 N.m (71 kgf/cm, 62 in.lbf)

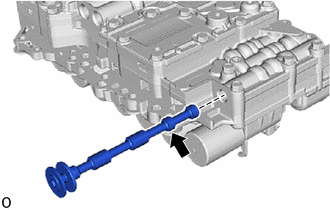

  11. INSTALL MANUAL VALVE
    1. Coat the manual valve with Toyota Genuine ATF WS and install it to the transmission valve body assembly.
      GTY1251508Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
