Disassembly [09/2024 - ]: Procedure

WARNING: This page is about a different car, the 2025 Toyota GR Corolla. However, it is still accessible from the selected car via links, so may be relevant.

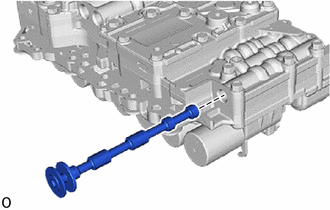

  1. REMOVE MANUAL VALVE
    1. Remove the manual valve from the transmission valve body assembly.
      GTY1251485Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE SOLENOID LOCK PLATE
    1. Remove the 3 bolts and solenoid lock plate from the transmission valve body assembly.
      GTY1252472Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE SOLENOID (SLU) VALVE
    1. Remove the solenoid (SLU) valve from the transmission valve body assembly.
      GTY1251487Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE SOLENOID (SL5) VALVE
    1. Remove the solenoid (SL5) valve from the transmission valve body assembly.
      GTY1252473Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE SOLENOID (SL6) VALVE
    1. Remove the solenoid (SL6) valve from the transmission valve body assembly.
      GTY1251493Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE SOLENOID (SL4) VALVE
    1. Remove the solenoid (SL4) valve from the transmission valve body assembly.
      GTY1251492Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE SOLENOID (SL3) VALVE
    1. Remove the solenoid (SL3) valve from the transmission valve body assembly.
      GTY1251546Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE SOLENOID (SL1) VALVE
    1. Remove the solenoid (SL1) valve from the transmission valve body assembly.
      GTY1251497Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE SOLENOID (SL2) VALVE
    1. Remove the solenoid (SL2) valve from the transmission valve body assembly.
      GTY1252474Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE SOLENOID (SLT) VALVE
    1. Remove the solenoid (SLT) valve from the transmission valve body assembly.
      GTY1251499Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE SOLENOID (SL) VALVE
    1. Remove the bolt and solenoid (SL) valve from the transmission valve body assembly.
      GTY1251498Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
