Components [09/2024 - ]

WARNING: This page is about a different car, the 2025 Toyota GR Corolla. However, it is still accessible from the selected car via links, so may be relevant.

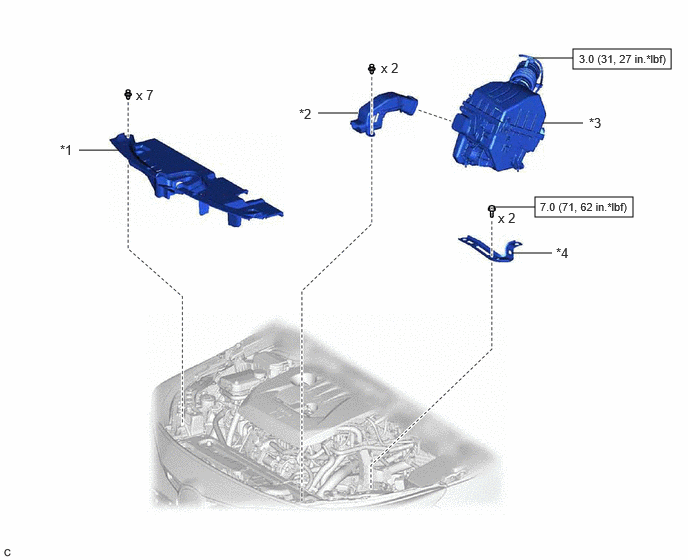

Fig 1: Transmission Wire Replacement Components With Torque Specifications (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	RADIATOR SUPPORT OPENING COVER	*2	INLET NO. 1 AIR CLEANER
*3	AIR CLEANER WITH AIR CLEANER HOSE	*4	AIR CLEANER BRACKET
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

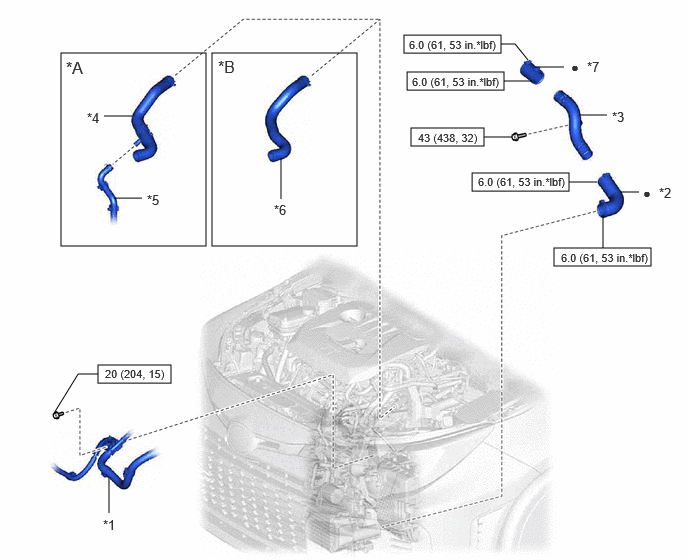

Fig 2: Transmission Wire Replacement Components With Torque Specifications (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*A	w/ Sub Radiator	*B	w/o Sub Radiator
*1	ENGINE WIRE	*2	NO. 4 AIR HOSE
*3	NO. 2 AIR TUBE	*4	RADIATOR HOSE ASSEMBLY
*5	NO. 1 SUB-RADIATOR HOSE	*6	NO. 1 RADIATOR HOSE
*7	NO. 5 AIR HOSE	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part

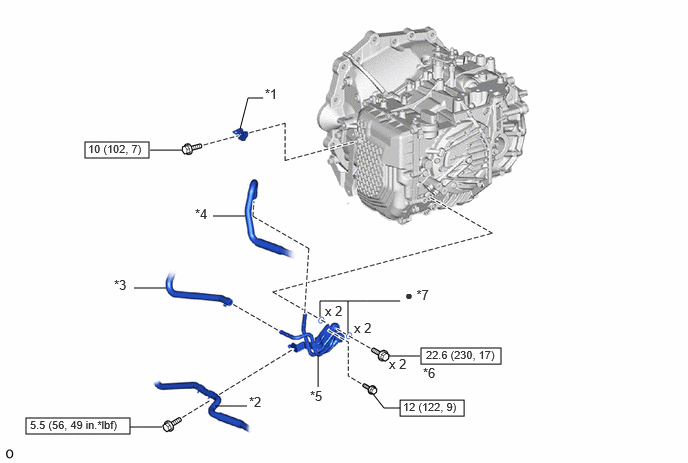

Fig 3: Transmission Wire Replacement Components With Torque Specifications (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	WIRE HARNESS CLAMP BRACKET	*2	NO. 1 OIL COOLER TUBE SUB-ASSEMBLY
*3	OUTLET NO. 1 OIL COOLER HOSE	*4	NO. 1 TRANSMISSION OIL COOLER HOSE ASSEMBLY
*5	OIL COOLER UNION SUB-ASSEMBLY	*6	OIL COOLER UNION BOLT
*7	GASKET	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part

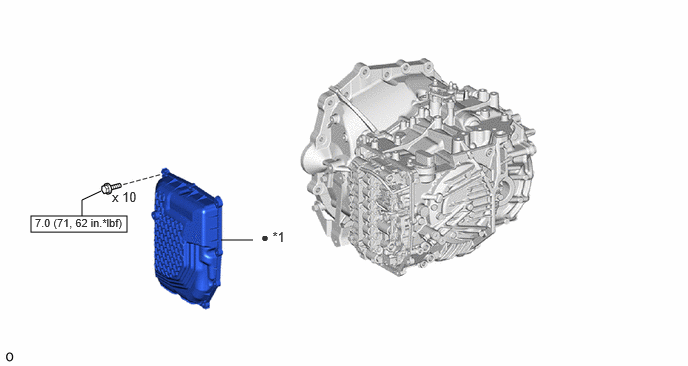

Fig 4: Transmission Wire Replacement Components With Torque Specifications (4 Of 5)

Callout	Description	Callout	Description
*1	TRANSMISSION CASE SIDE COVER	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part

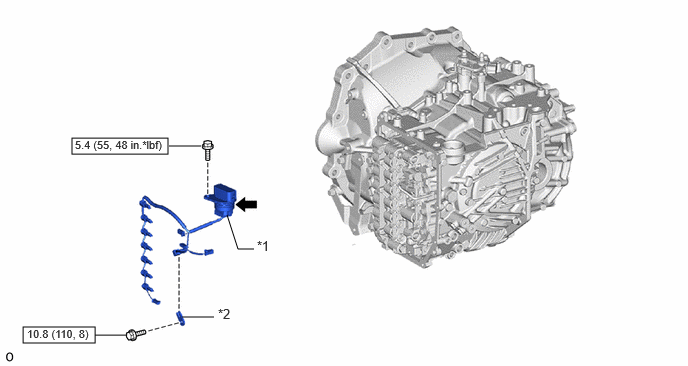

Fig 5: Transmission Wire Replacement Components With Torque Specifications (5 Of 5)

Callout	Description	Callout	Description
*1	TRANSMISSION WIRE	*2	TEMPERATURE SENSOR CLAMP
	N.m (kgf/cm, ft.lbf): Specified torque		Toyota Genuine ATF WS
