Components [09/2024 - ]

WARNING: This page is about a different car, the 2025 Toyota GR Corolla. However, it is still accessible from the selected car via links, so may be relevant.

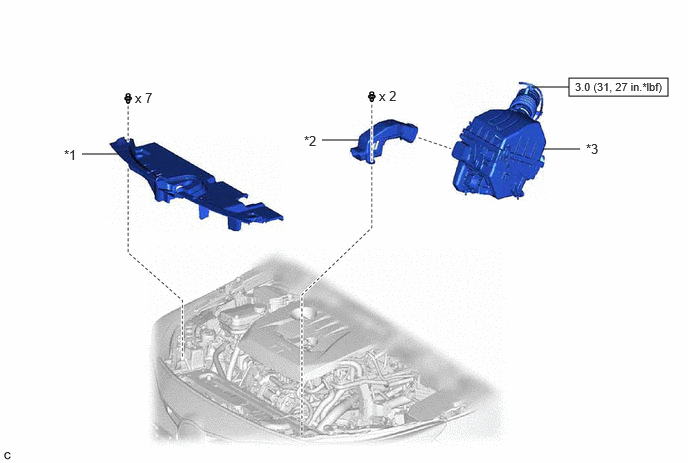

Fig 1: Transmission Control Cable Replacement Components With Torque Specifications (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	RADIATOR SUPPORT OPENING COVER	*2	INLET NO. 1 AIR CLEANER
*3	AIR CLEANER WITH AIR CLEANER HOSE	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

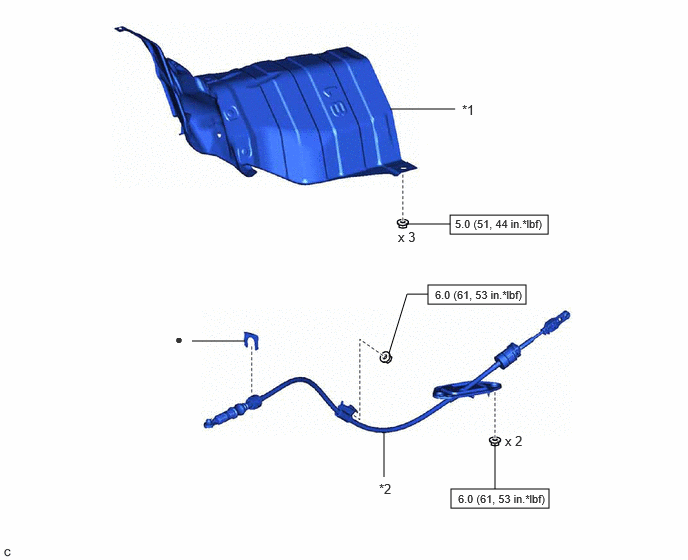

Fig 2: Transmission Control Cable Replacement Components With Torque Specifications (2 Of 2)

Callout	Description	Callout	Description
*1	NO. 1 FRONT FLOOR HEAT INSULATOR SUB-ASSEMBLY	*2	TRANSMISSION CONTROL CABLE ASSEMBLY
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part
