Adjustment [09/2024 - ]: Procedure

1. Fully apply the parking brake and chock a wheel.
   WARNING:

   • Make sure to apply the parking brake and chock a wheel before performing this procedure.
   • If the vehicle is not secure and the shift lever is moved to N, the vehicle may suddenly move, possibly resulting in an accident or serious injury.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Refer to REMOVAL [09/2024 - ]

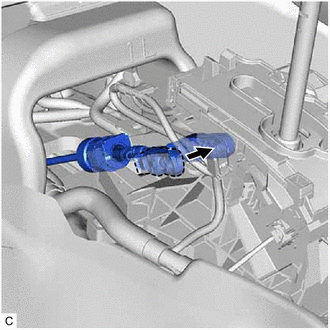

1. Disconnect the transmission control cable assembly from the transmission floor shift assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

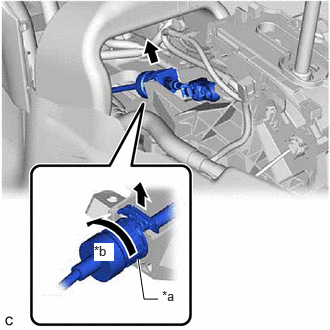

2. Rotate the lock nut counterclockwise approximately 180° and, while holding the lock nut in that position, disconnect the transmission control cable assembly from the transmission floor shift assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Lock Nut
   *b	Counterclockwise

   NOTE:

   Do not forcibly pull the transmission control cable assembly into the cabin.

3. Slide the adjuster case cover in the direction shown by the arrow.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Slide
   *b	Adjuster Case Cover

4. Using a precision screwdriver, pull out the lock piece of the adjuster case.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Pull Out
   *b	Lock Piece
   *c	Adjuster Case

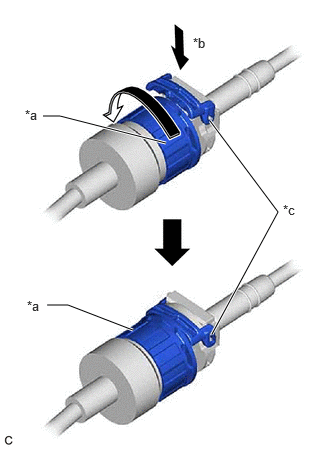

5. Turn the lock nut of the transmission control cable assembly counterclockwise. While holding the lock nut, push in the stopper.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Lock Nut
   *b	Push in
   *c	Stopper

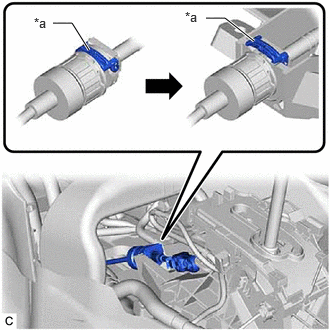

6. Connect the transmission control cable assembly to the transmission floor shift assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Stopper

   NOTE:

   • After installation, check that the outer part of the stopper is as shown in the illustration.
   • Do not forcibly pull the transmission control cable assembly into the cabin.

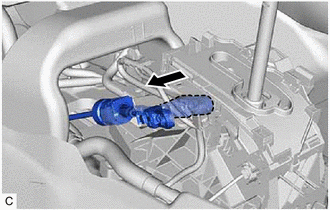

7. Connect the transmission control cable assembly to the transmission floor shift assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NOTE:

   • Before connecting the transmission control cable assembly, check that the shift lever is in N.

   • Securely connect the end of the transmission control cable assembly to the transmission floor shift assembly.

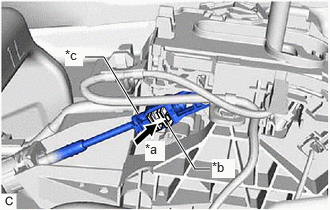

8. Push in the lock piece of the adjuster case to lock it.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Push in
   *b	Lock Piece
   *c	Adjuster Case

   NOTE:

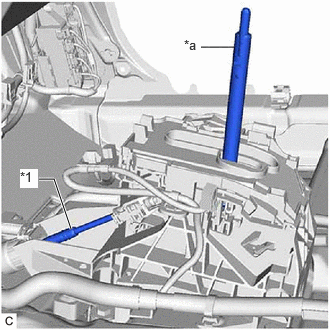

   • When pushing in the lock piece of the adjuster case to lock it, remove your hand from the lever shaft.

     Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

     *1	Transmission Control Cable Assembly
     *a	Lever Shaft

   • When pushing in the lock piece of the adjuster case to lock it, do not move the lever shaft or transmission control cable assembly forward or backward.

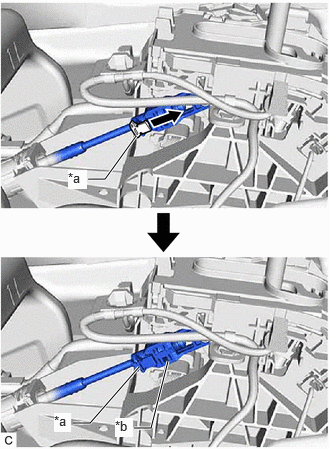

9. Move the adjuster case cover in the direction shown by the arrow.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Adjuster Case Cover
   *b	Lock Piece

   NOTE:

   If the adjuster case cover is not moved far enough so that the adjuster case cover engages the lock piece, the transmission control cable assembly will not be able to lock, and reliable shift operation will not be possible.

Refer to INSTALLATION [09/2024 - ]
