Removal [09/2024 - ]: Procedure

WARNING: This page is about a different car, the 2025 Toyota GR Corolla. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE STEERING WHEEL ASSEMBLY

    Refer to REMOVAL [09/2024 - ]

  2. REMOVE NO. 1 STEERING WHEEL ORNAMENT

    Refer to PROCEDURE - Step 3

  3. REMOVE STEERING PAD SWITCH ASSEMBLY

    Refer to PROCEDURE - Step 4

  4. REMOVE SHIFT PADDLE SWITCH (TRANSMISSION SHIFT SWITCH ASSEMBLY)

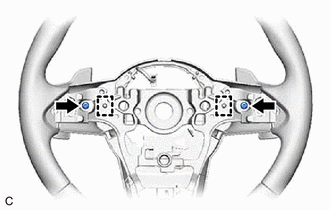

    1. Remove the 2 screws and disengage the 2 guides to disconnect the 2 shift paddle switches (transmission shift switch assemblies) from the steering wheel assembly.
      GTY1251865Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

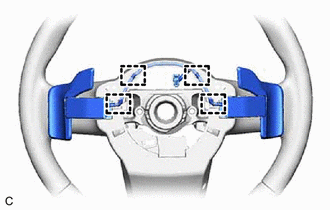

    2. Disengage the 4 guides to remove the 2 shift paddle switches (transmission shift switch assemblies) with No. 1 switch wire from the steering wheel assembly.
      GTY1251867Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disconnect the No. 1 transmission shift switch assembly connector and No. 2 transmission shift switch assembly connector to remove the No. 1 transmission shift switch assembly and No. 2 transmission shift switch assembly from the No. 1 switch wire.
      GTY913769Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 No. 1 Transmission Shift Switch Assembly
      *2 No. 2 Transmission Shift Switch Assembly
