Removal [09/2024 - ]: Procedure

1. Fully apply the parking brake and chock a wheel.
   WARNING:

   • Make sure to apply the parking brake and chock a wheel before performing this procedure.
   • If the vehicle is not secure and the shift lever is moved to N, the vehicle may suddenly move, possibly resulting in an accident or serious injury.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

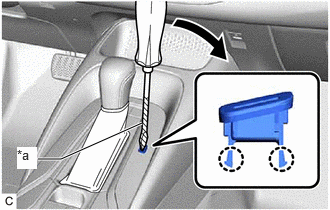

1. Using a screwdriver with its tip wrapped with protective tape, disengage the 2 claws to remove the shift lock release button cover from the position indicator housing assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Protective Tape

   NOTE:

   Be careful not to damage the shift lock release button cover and position indicator housing assembly.

See step  1

Refer to REMOVAL [09/2024 - ]

1. Move the shift lever to N.
2. Disconnect the transmission control cable assembly from the transmission floor shift assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

3. Rotate the lock nut counterclockwise approximately 180° and, while holding the lock nut in that position, disconnect the transmission control cable assembly from the transmission floor shift assembly.
   NOTE:

   Do not forcibly pull the transmission control cable assembly into the cabin.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Lock Nut
   *b	Counterclockwise

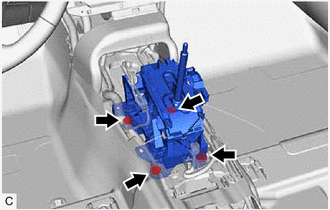

1. Remove the 4 bolts and separate the transmission floor shift assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

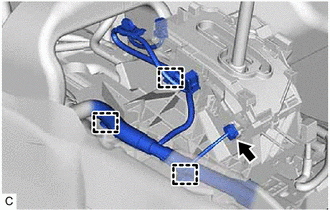

2. Disconnect the transmission control switch connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

3. Disengage the 3 clamps to separate the wire harness from the transmission floor shift assembly.

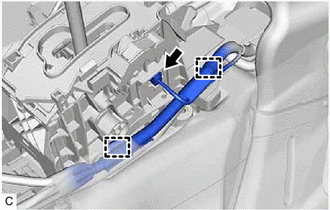

4. Disconnect the shift lock control ECU connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

5. Disengage the 2 clamps to separate the wire harness from the transmission floor shift assembly.
6. Remove the transmission floor shift assembly.
