Removal [09/2024 - ]: Procedure
WARNING: This page is about a different car, the 2025 Toyota GR Corolla. However, it is still accessible from the selected car via links, so may be relevant.
- REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY

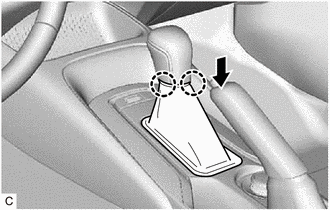

- Disengage the 2 claws to disconnect the shifting hole cover sub-assembly as shown in the illustration.

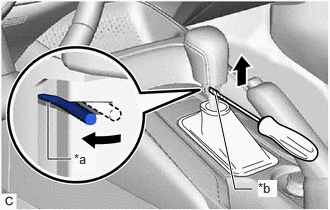

- Using a screwdriver with its tip wrapped with protective tape, expand the LH side clip and pull out the shift lever knob sub-assembly from the transmission floor shift assembly as shown in the illustration.
*a Clip *b Protective Tape NOTE:Be careful not to damage the shift lever knob sub-assembly.
- Disengage the 2 claws to disconnect the shifting hole cover sub-assembly as shown in the illustration.
